Aeromotive Dual Action Adjustable Fuel Log - Holley

Aeromotive Dual Action Adjustable Fuel Log - Holley

For 4150 or 4500 Dominator Style Float Bowls.

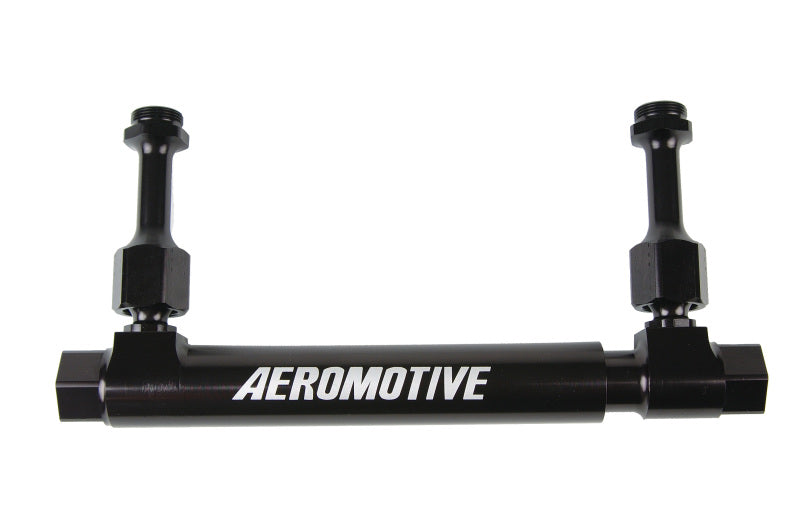

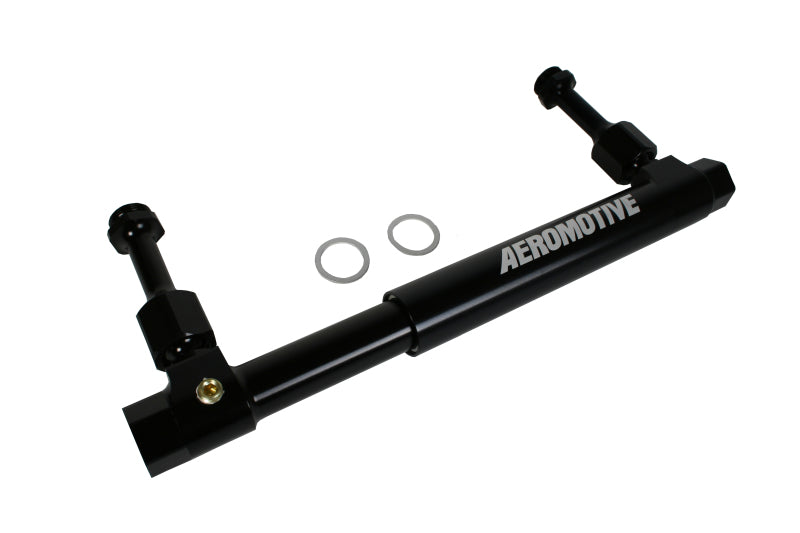

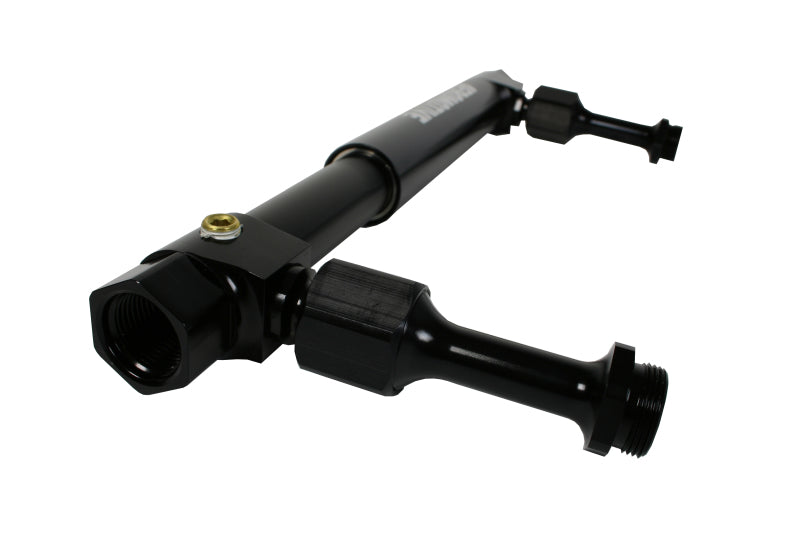

The new Aeromotive Fuel Log incorporates features never before available. Each carburetor inlet features a ball and socket assembly that swivels +/-20 degrees, allowing additional clearance for throttle stops, nitrous plates and other accessories; then locks in place at the desired position. The telescoping log will fit 4150 or 4500 Dominator (P/N 14201) carburetors. The ORB-10 inlet and outlet ports will feed the hungriest big blocks, and adapt easily to Aeromotive P/N 13212 (A2000 Bypass ? gasoline) or P/N 13214 (Double Adjustable Bypass ? alcohol) fuel pressure regulators.
Carburetor inlets swivel + or ? 20? in all directions.
Telescoping center line 7.700" to 13.450".
ORB-10 inlet and outlet ports.
(2) 1/8" NPT ports for gauges or pressure transducers.
1.056 / .806" ID bore.
Type II bright dip black anodized finish.

Available as a kit with regulator, gauge & fittings:

17248 ? Includes A2000 Bypass, 2-port Regulator ? P/N 13212

17249 ? Includes Double Adjustable Bypass Regulator ? P/N 13214
