ORC A'PEXi - N1 Evo Extreme (Catback) - 2022+ Honda Civic Hatchback Sport Touring / EX-L [FL1]

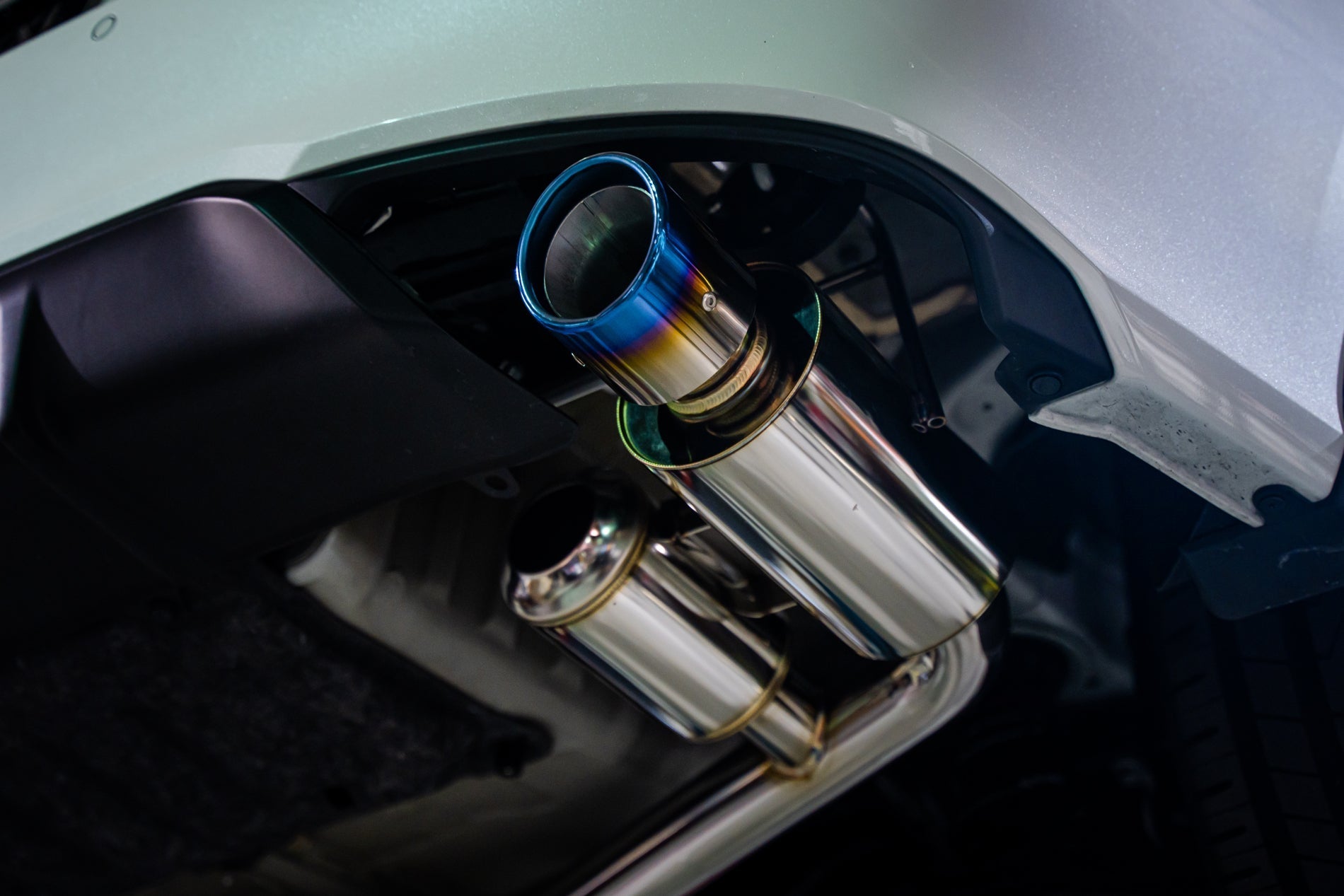

The N1 Evolution Extreme is based on the proven performance basics of the N1 muffler which emphasizes optimum, exhaust efficiency utilizing a straight-thru layout design. Equipped with an internal hybrid silencer uniting power and free flowing characteristics with effective functional sound resonance. A newly adopted muffler tip completes the tail end of the exhaust that serves both purposes of function and form. Constructed with a light weight titanium material rolled and riveted onto a double pipe structure which acts as a diffuser enabling temperature reduction, meanwhile retaining a sporty heat gradation appearance.

PRODUCT FEATURES:

• N1 EvX titanium tips specially designed with clearance to reduce heat transfer
• Top Level quality using full tig-welded SUS304 stainless steel
• Matched and manufactured for select chassis
• A'PEXi intricate designed brackets
• Resonated midpipe structure
• Comfort with optimal performance gains

* Does Not Fit : Honda Civic Si (2022+) / Integra DE4 (2023+)

Bolt-On	Yes
Part Number	164KH004
Year	2022+
Make	Honda
Model	Civic Hatchback Sport Touring EX-L (*MUST USE Honda OE Hatchback Sport Touring Diffuser*)
Body Style	FL1 - 4 Door Hatchback
Engine	L15BA (Turbo)
Chassis	FL1 - 4 Door Hatchback
Exhaust Type	N1 Evolution Extreme Muffler (N1-X)
Piping Diameter	3inch to 2.5inch
Tip Diameter	105mm. x 2
Pieces	3
Exhaust Tip Style	Titanium Round- Dual wall rolled, Angle cut (Riveted)
Piping Material	SUS304 Stainless Steel
Muffler Material	SUS304 Stainless Steel
Muffler Tip Material	Titanium
Note	EX-L models needs to run with Honda Civic Hatchback Sport Touring OE Diffuser. Straight clip on to the EX-L models for true exhaust outlets to match up with A'PEXi N1-X exhaust system.
