Black Diamond Class D 4-Channel Full Range Amplifier | 400W RMS X 4 at 4-Ohm

Black Diamond DIA-P3600X4D
Class D 4-Channel Full Range Amplifier

The DIA-P3600X4D powers your system with 400W RMS per channel at 4 ohms and 680W RMS per channel at 2 ohms. Bridged, it delivers 1200W RMS per channel at 4 ohms. It covers 20Hz to 20kHz with 1% distortion, maintaining clean, powerful sound.

Flexible Audio Control

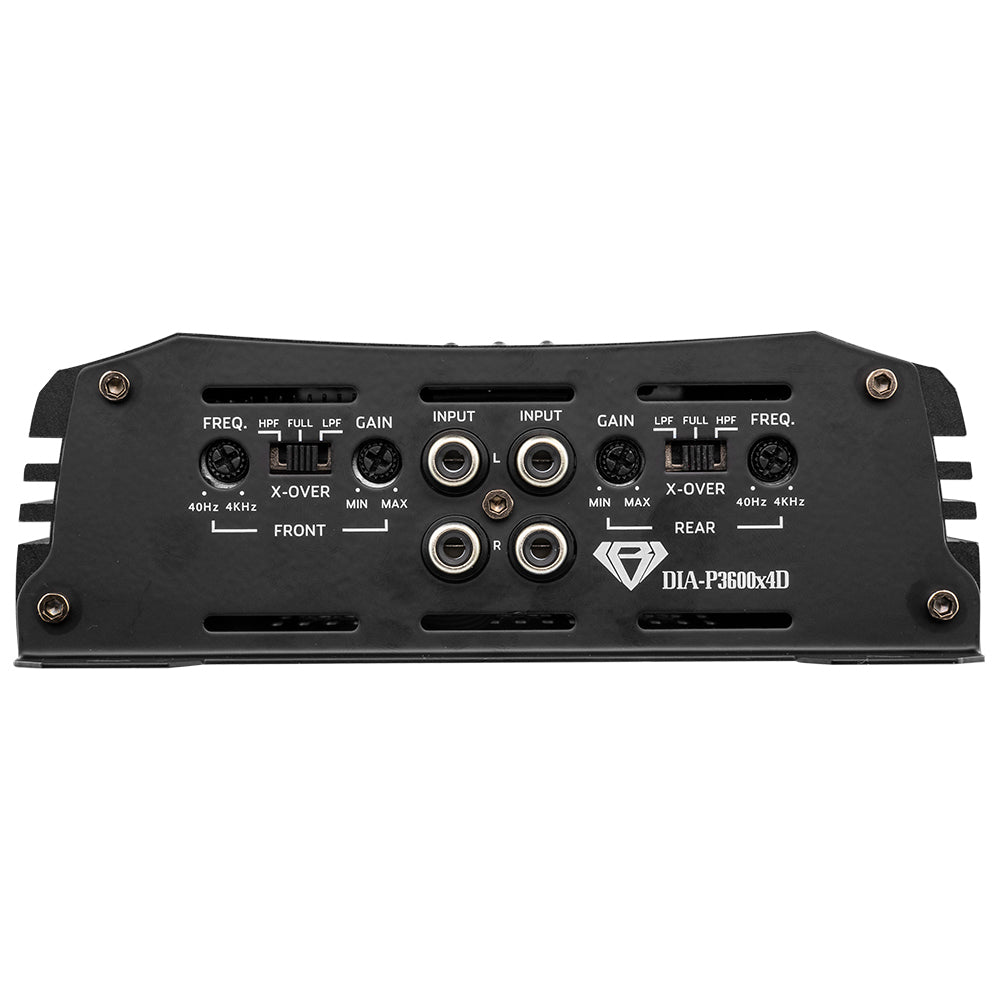

Gain ranges from 0.2 to 6 volts input sensitivity. Selectable full, low-pass, or high-pass crossovers operate between 40Hz and 4kHz, allowing you to dial in your perfect sound.

Durability You Can Trust

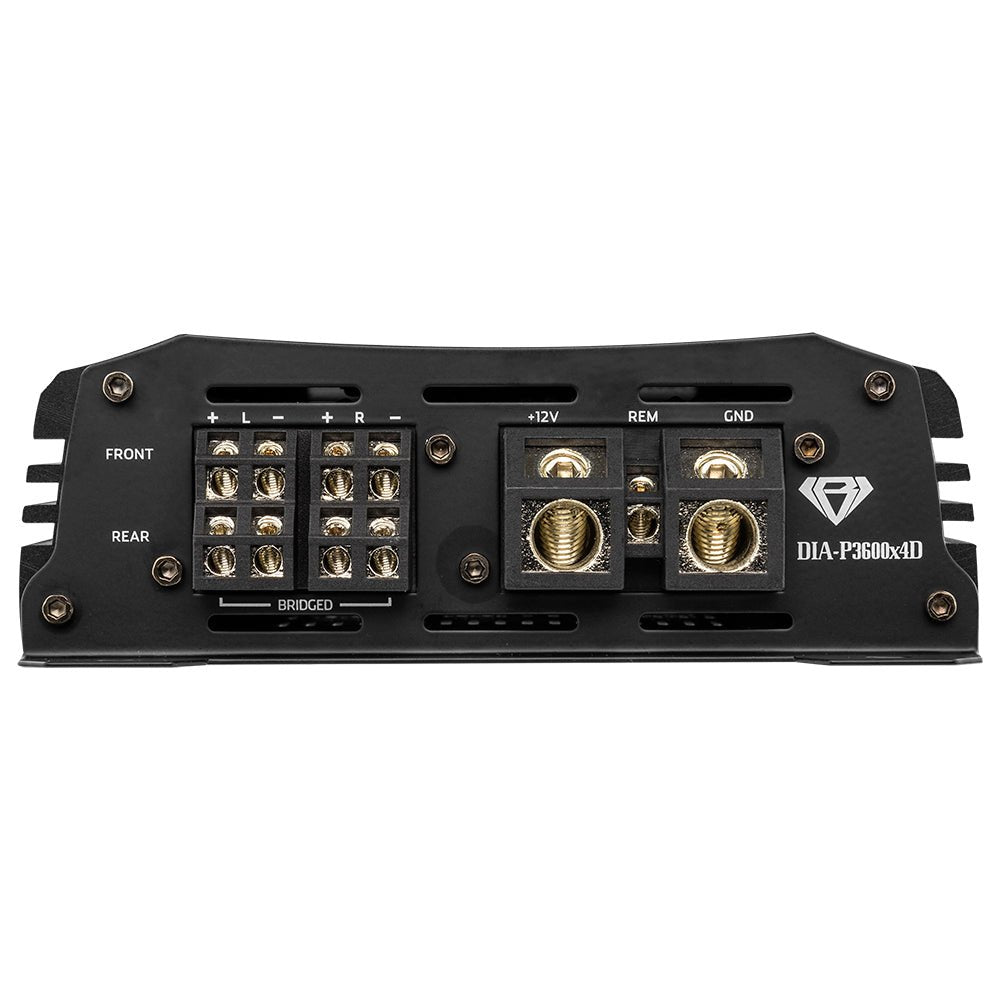

This amplifier includes thermal, overload, DC output, short circuit, voltage input, and clipping protections to maintain peak performance. It uses 0 gauge power wiring and requires a 280A fuse.

Designed to Perform
Measuring 12.36 inches long, 6.1 inches wide, and 2 inches tall, the DIA-P3600X4D features an 11.41-inch heatsink for superior heat dissipation and reliable operation under heavy load.
