FastLab Bolt On Tube Clamps - Weldable

FastLab UTV Bolt On Tube Clamps - Weldable

Use these tube clamps to fabricate add on components to your frame or FASTLAB products.  Available for 1.875" (Stock Can-am Cage), 1.75", and 1.5" tube

 Specs:

1-1/2" Tube Clamps:

• Clamp I.D. = 1-7/16"(undersized for great clamping strength.)
• Clamp O.D. = 2-1/2"
• Clamp Thickness= 1/2"
• Overall Length = 2-1/4"

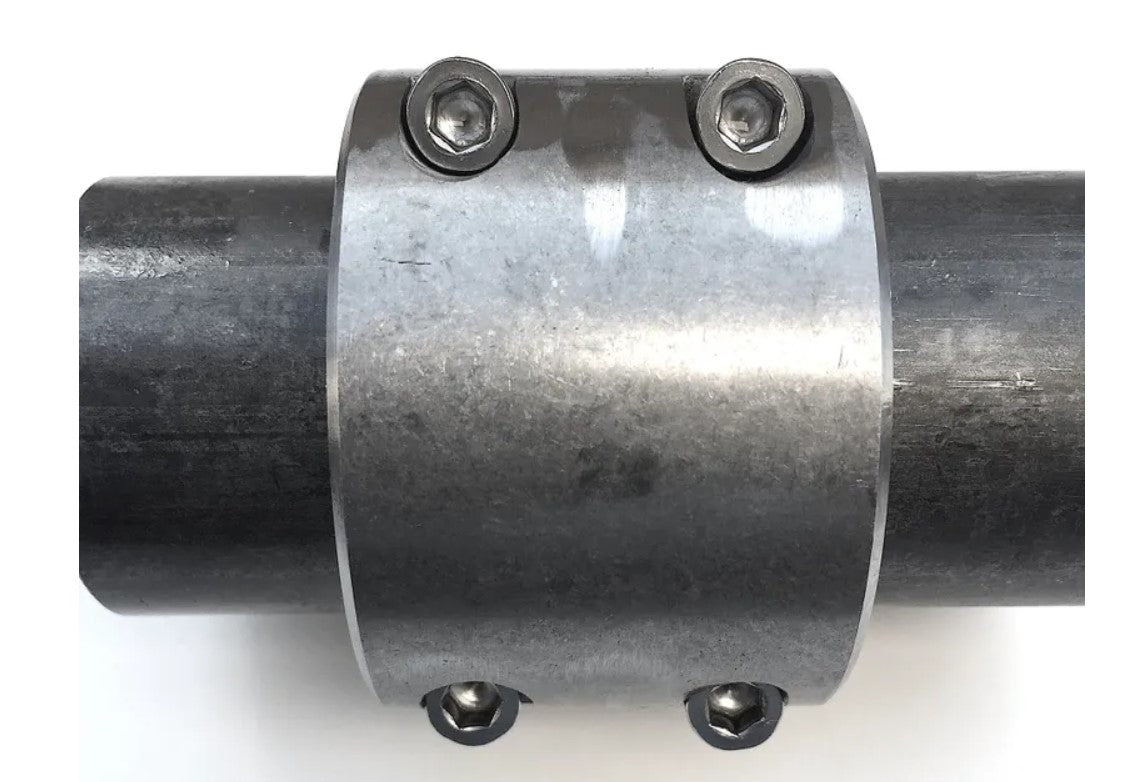

1-3/4" Tube Clamps:

• Clamp I.D. = 1.75"
• Clamp O.D. = 2.5"
• Clamp Thickness= 3/8"
• Overall Length =1-3/4"

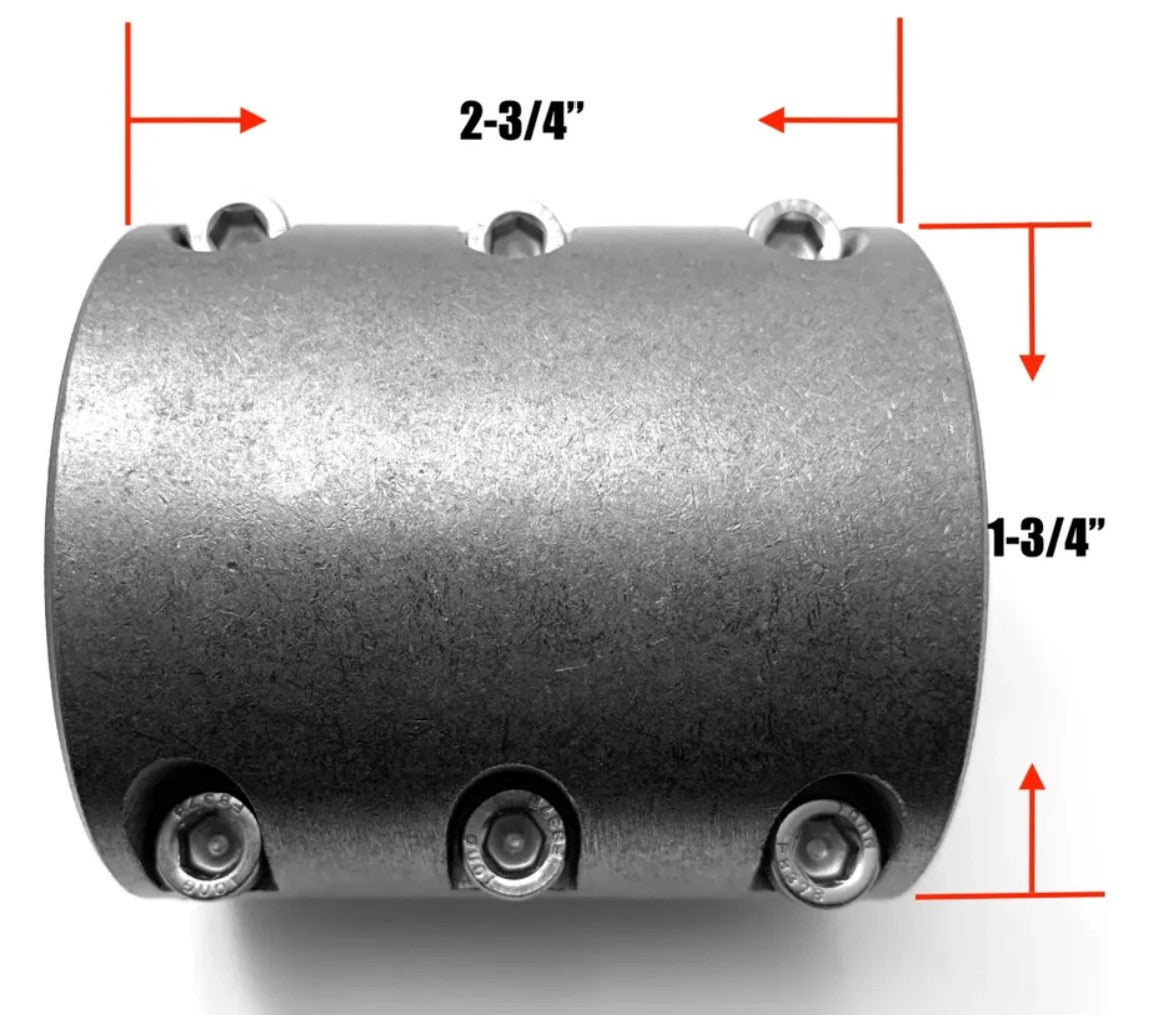

1-3/4" LONG Tube Clamps:

• Clamp I.D. = 1.75"
• Clamp O.D. = 2.5"
• Clamp Thickness= 3/8"
• Overall Length =2-3/4"

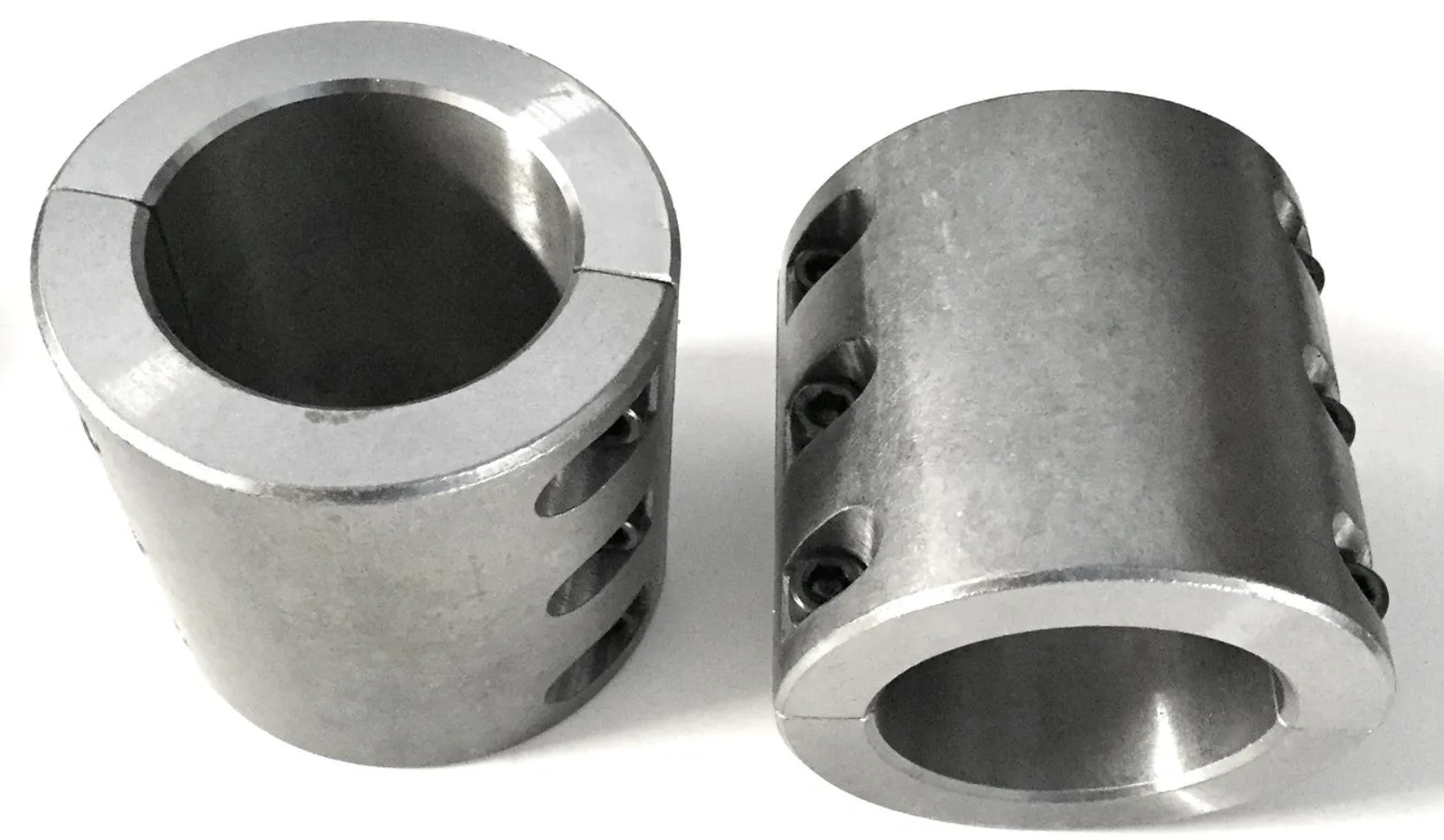

1-7/8" Tube Clamps:

• Clamp I.D. = 1-13/16"
• Clamp O.D. = 2-3/4"
• Clamp Width- 2-3/4" Plenty of room for mitered tubes
• Clamp Thickness= 1/2"

2" Tube Clamps:

• Clamp I.D. = 1-15/16"
• Clamp O.D. = 3"
• Clamp Width- 2-7/8" Plenty of room for mitered tubes
• Clamp Thickness= 1/2"
