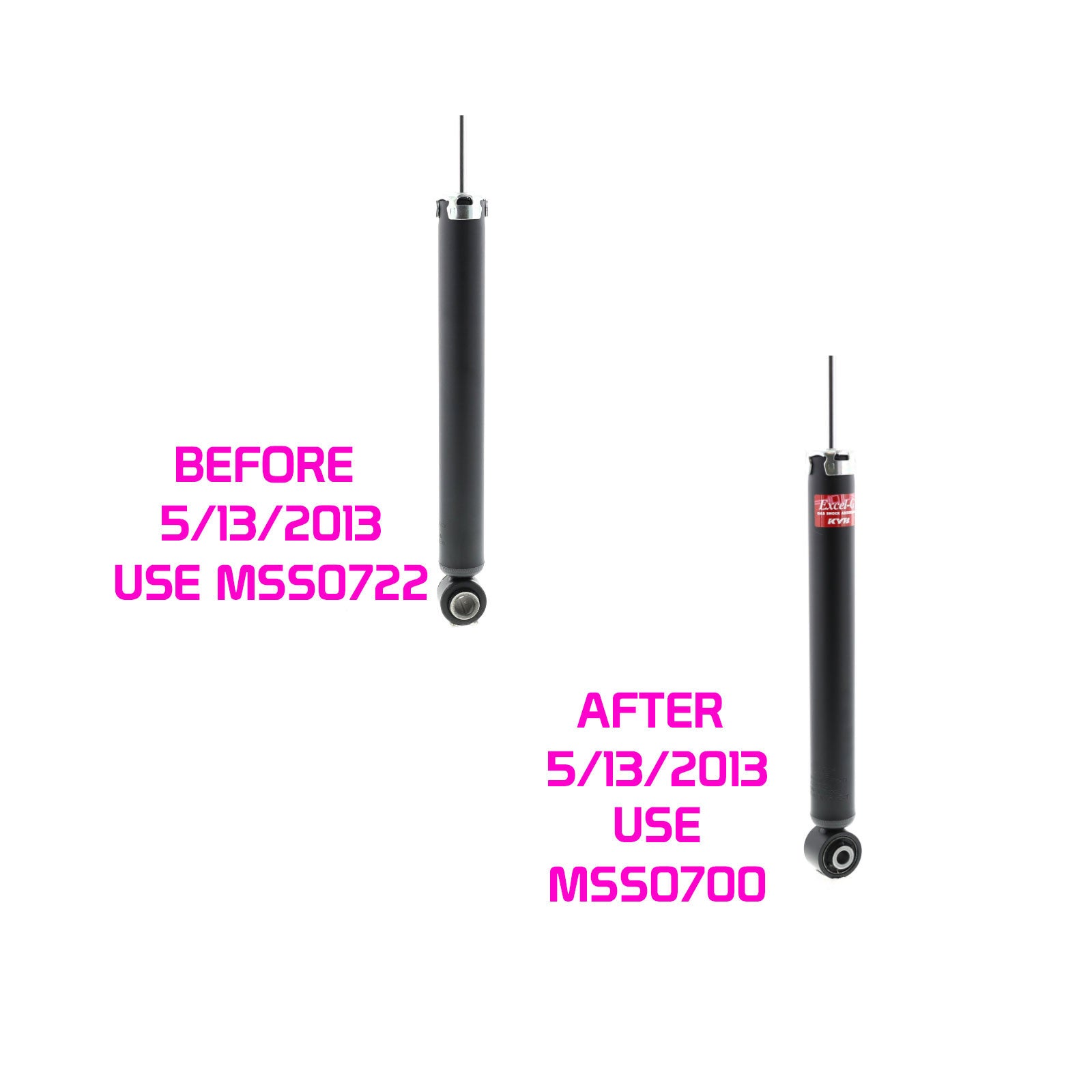

Godspeed Mazda6 (GJ/GL) 2014-2017 Coilovers (after 5/13/2013)

Godspeed Mazda6 (GJ/GL) 2014-2017 Coilovers (after 5/13/2013)

$750.00 USD
$750.00 USD $750.00 USD
Sale Sold out
Shipping calculated at checkout.
Year, Style

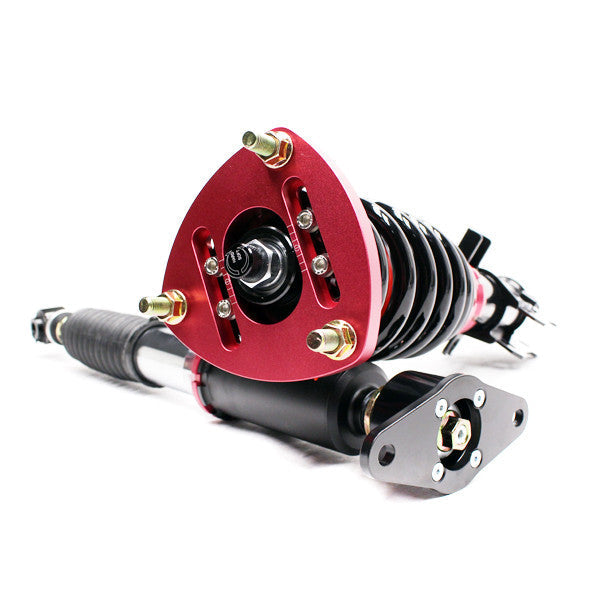

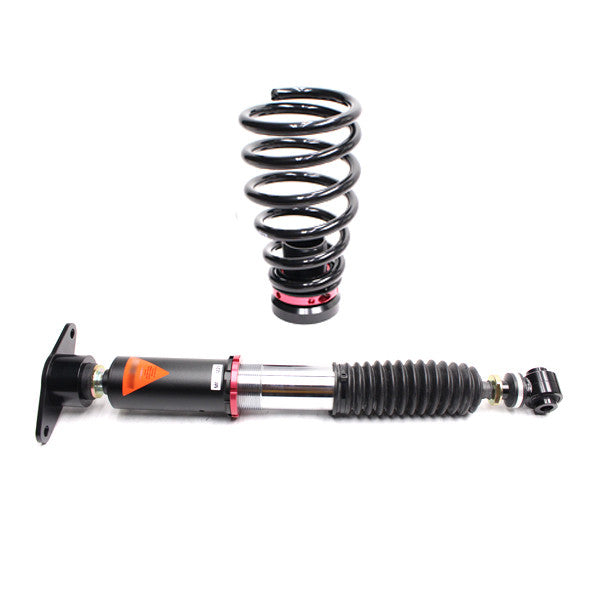

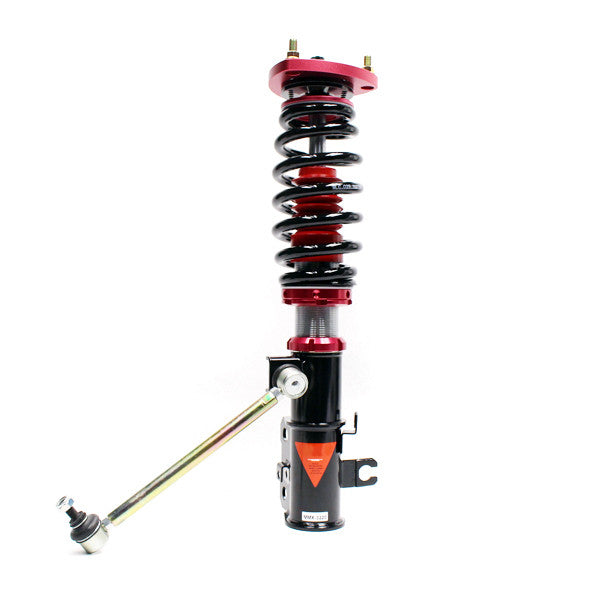

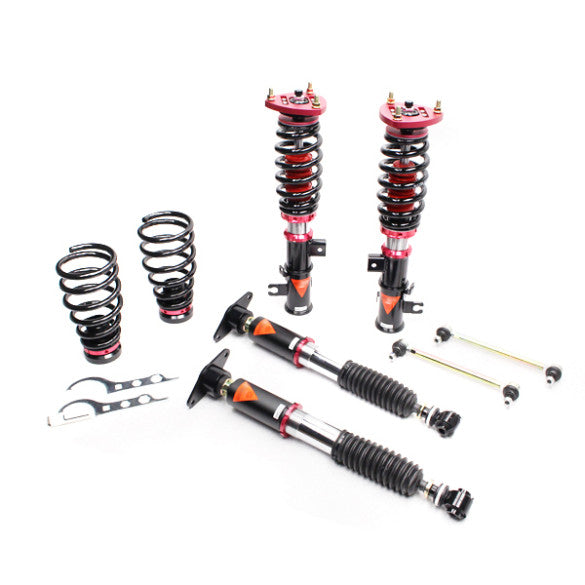

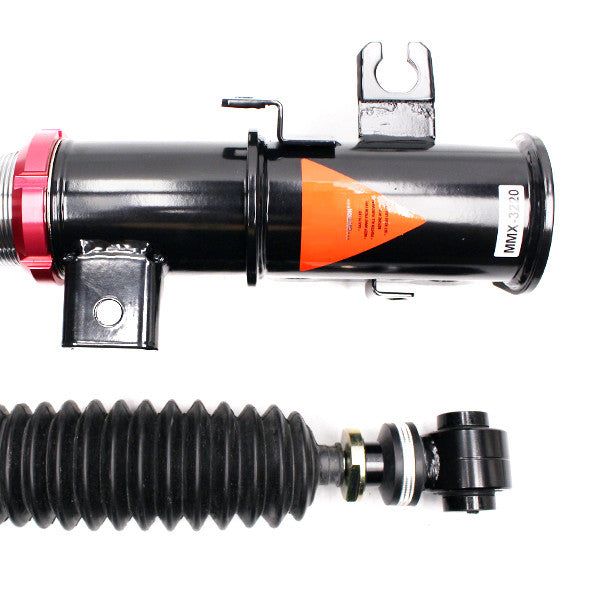

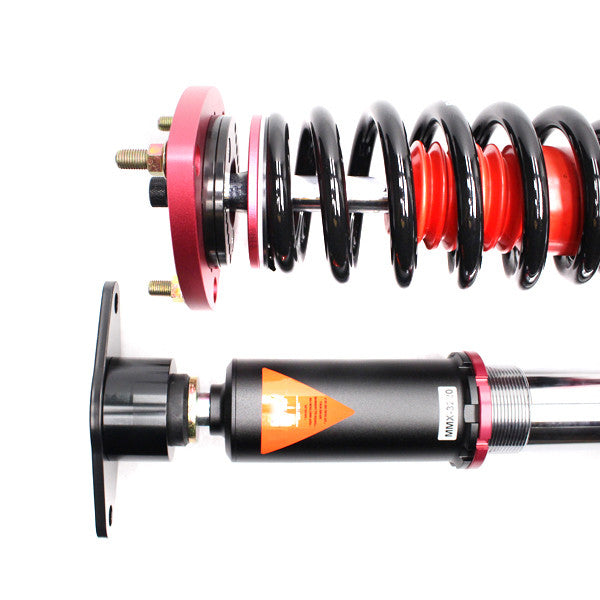

2014-2017 MAXX

Special Notes Prior to installation, verify all hardware and properly tighten and spring preload is set to 5-10mm(1/4-3/8in). Our technical department is available to answer any other questions.
Damping Levels 40-Level
Height Adjustment Yes
Spring Rate(Front) 8 kg/mm (448 lbs/inch)
Spring Rate(Rear) 5.7 kg/mm (319 lbs/inch)
Spring Length(Front) 200 mm
Spring Length(Rear) 210 mm

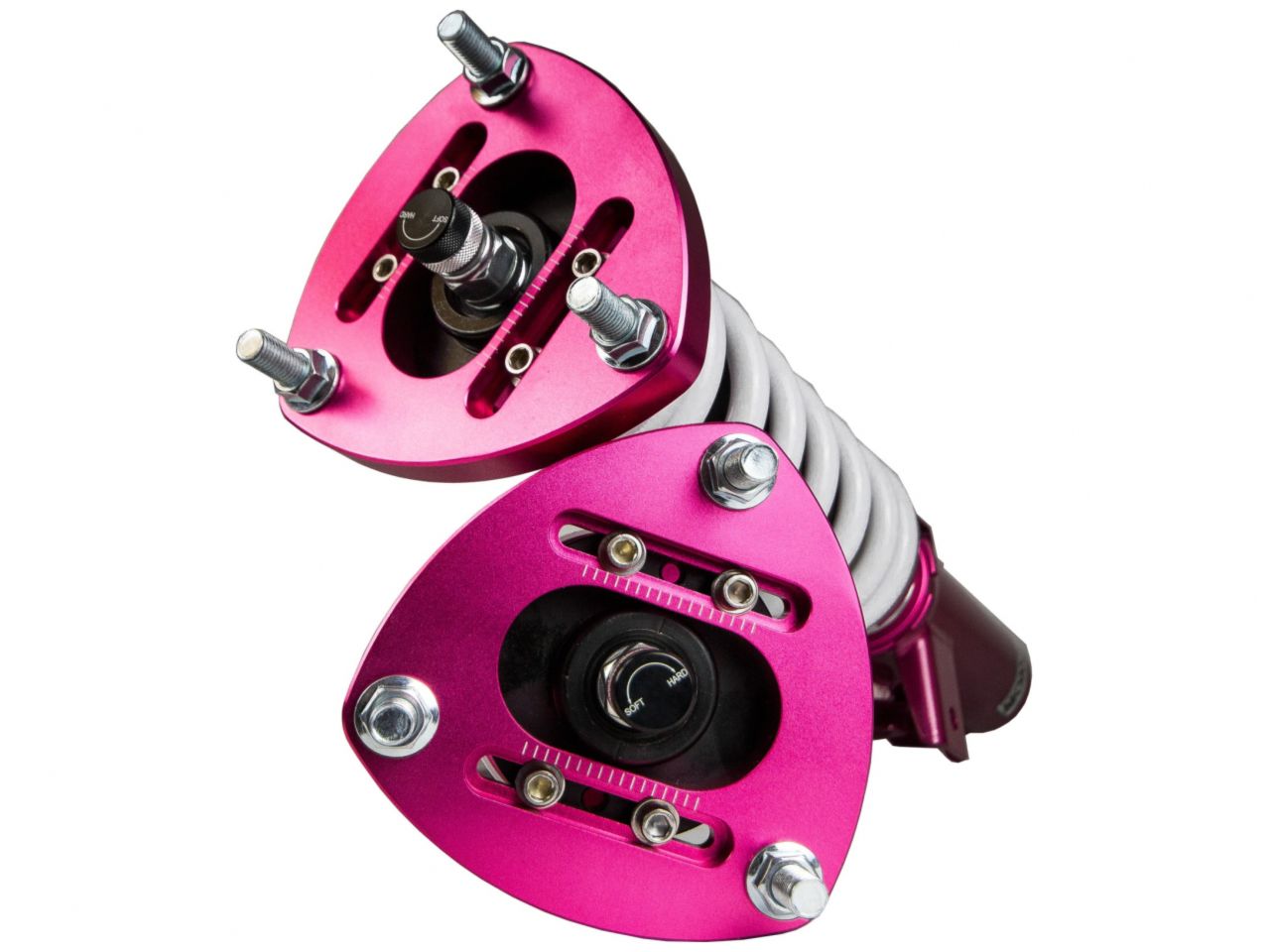

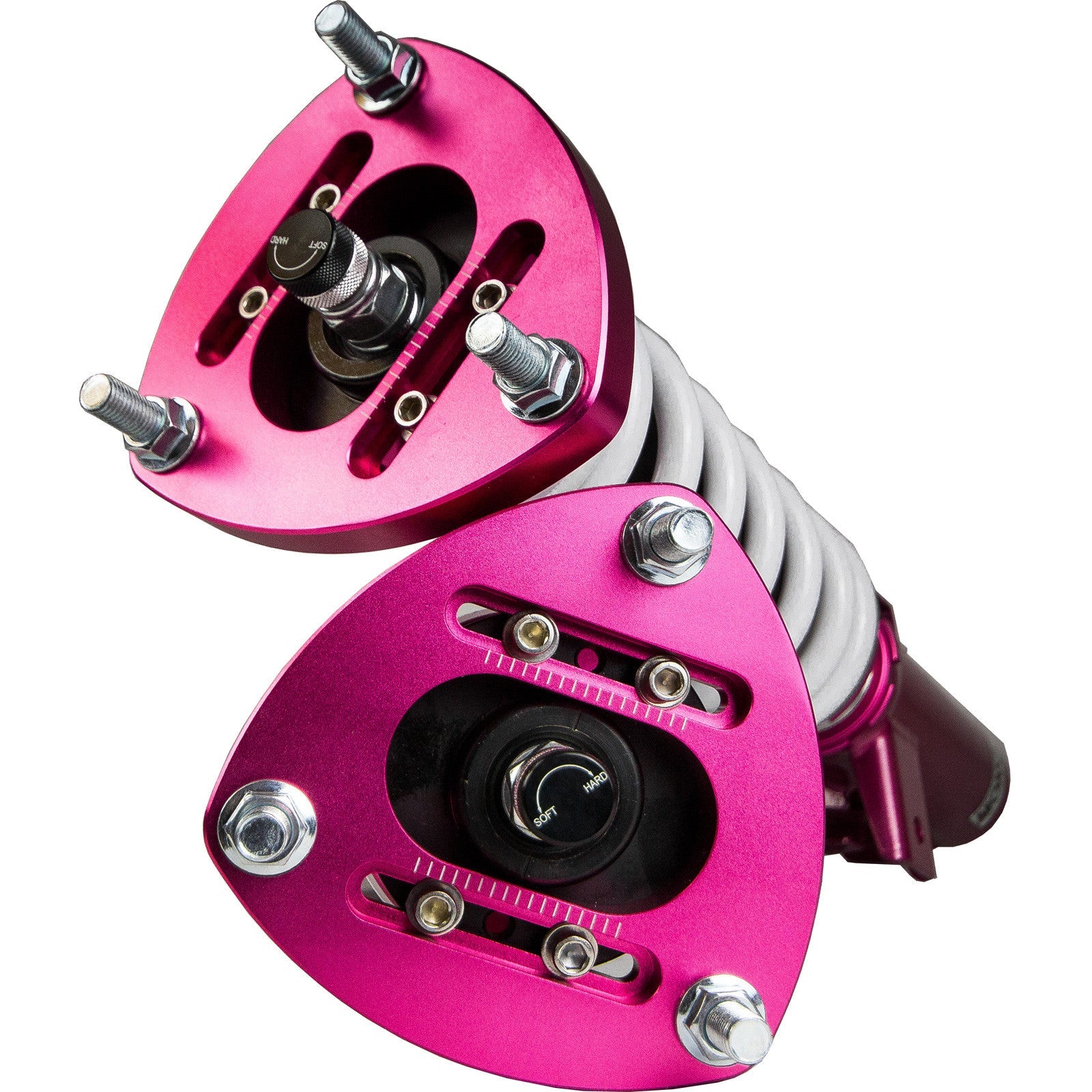

Front Top Mount Yes, Pillow Ball w/ Camber Plate
Rear Top Mount Yes, Standard Type
Spring Inner Diameter(Front) 62 mm (2.44 inch)
Spring Inner Diameter(Rear) 62 mm (2.44 inch)
Warranty Note No
User Guide Coilover User Guide

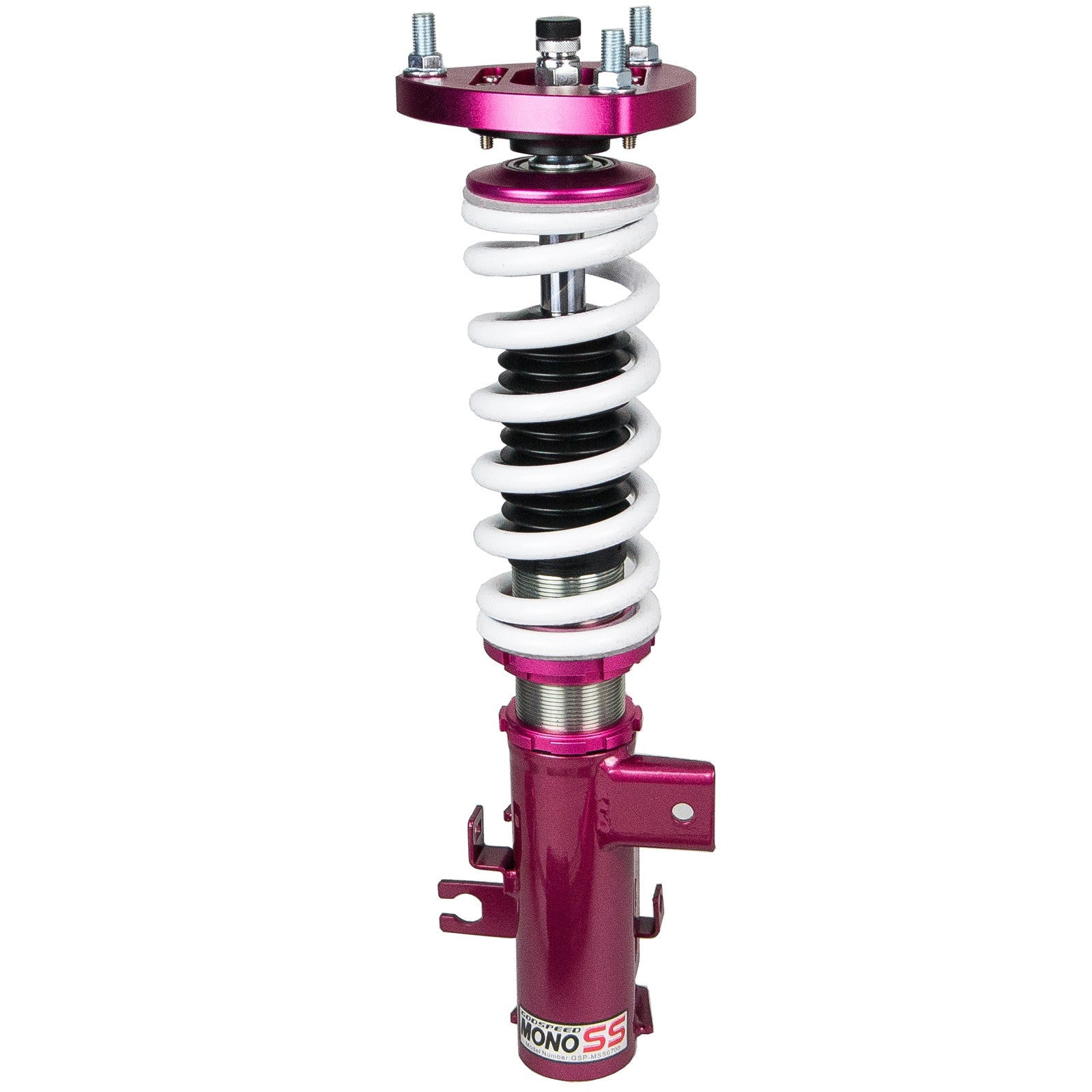

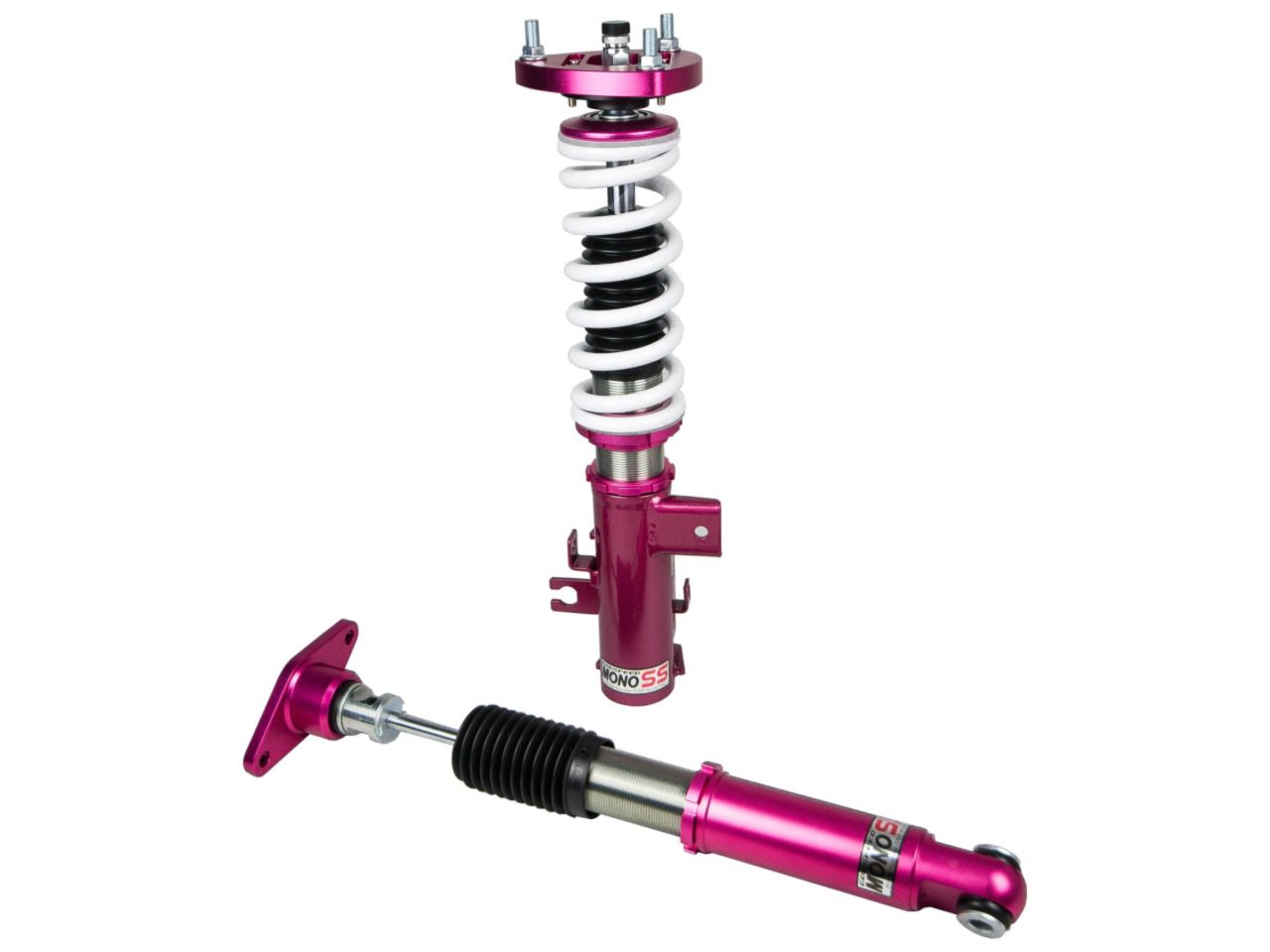

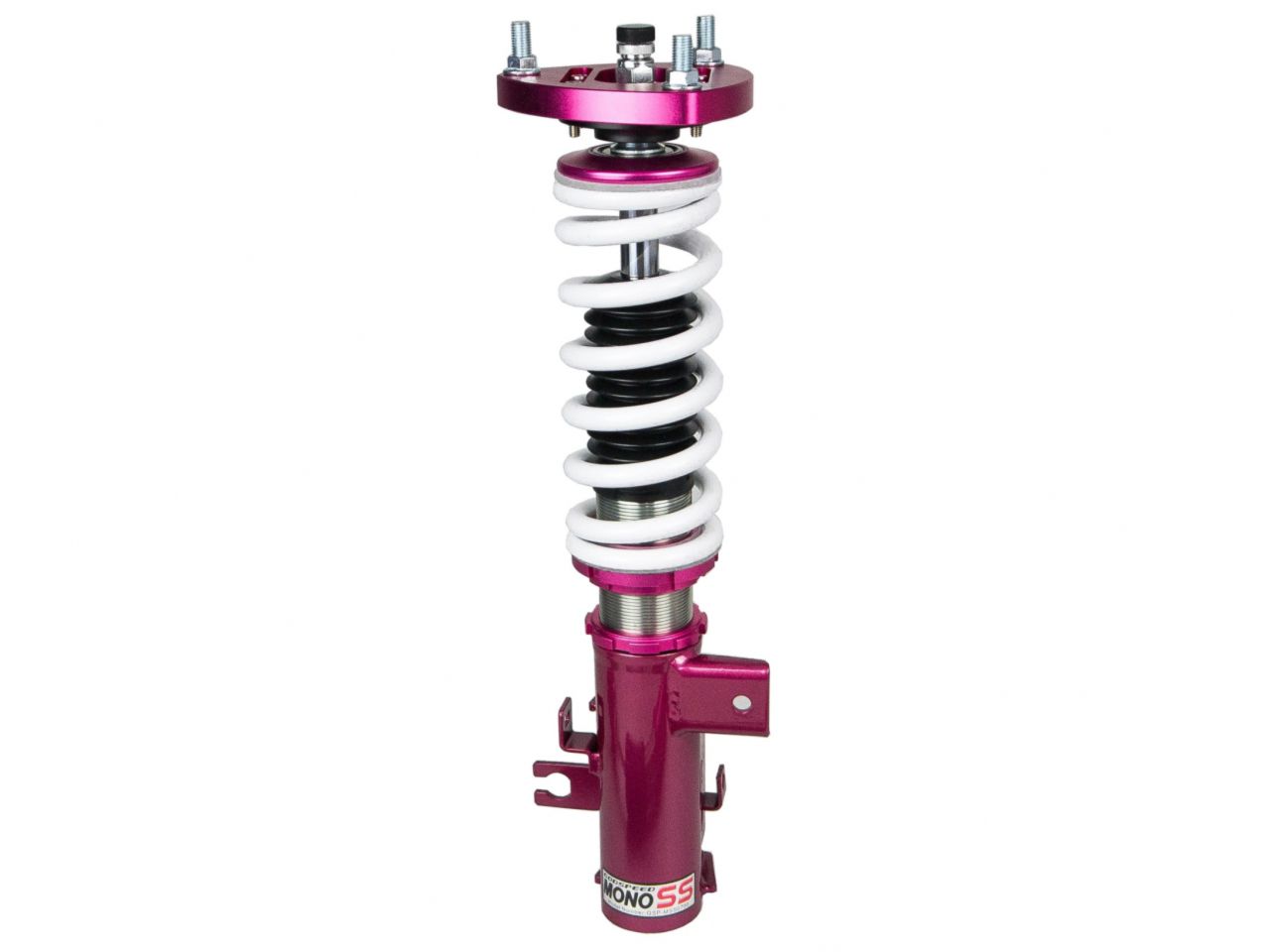

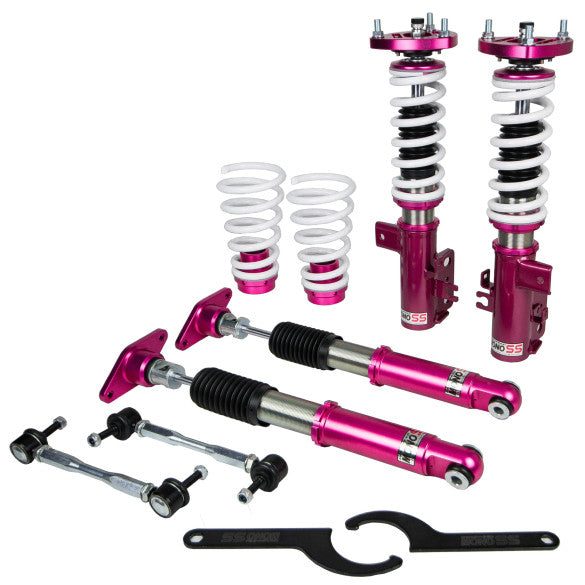

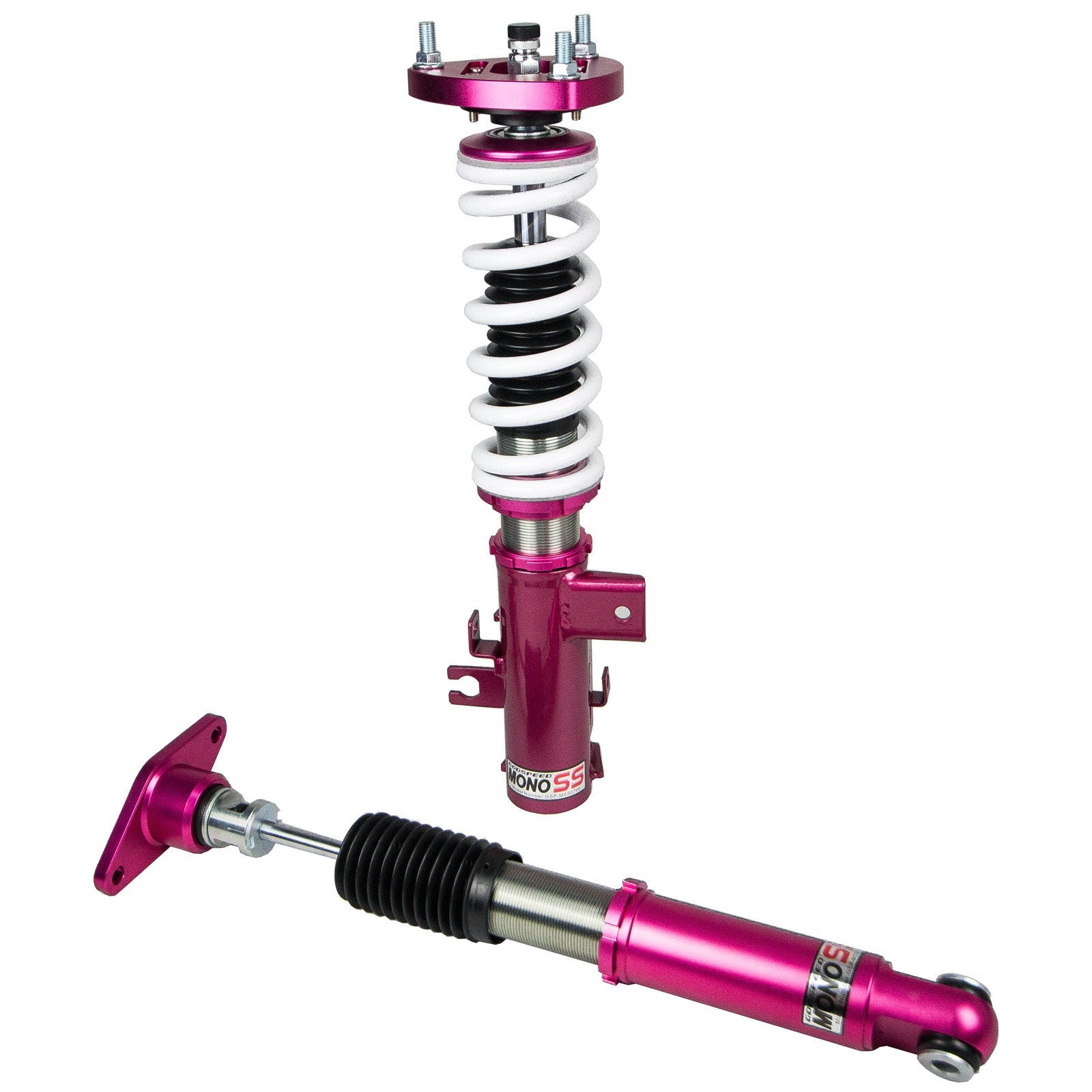

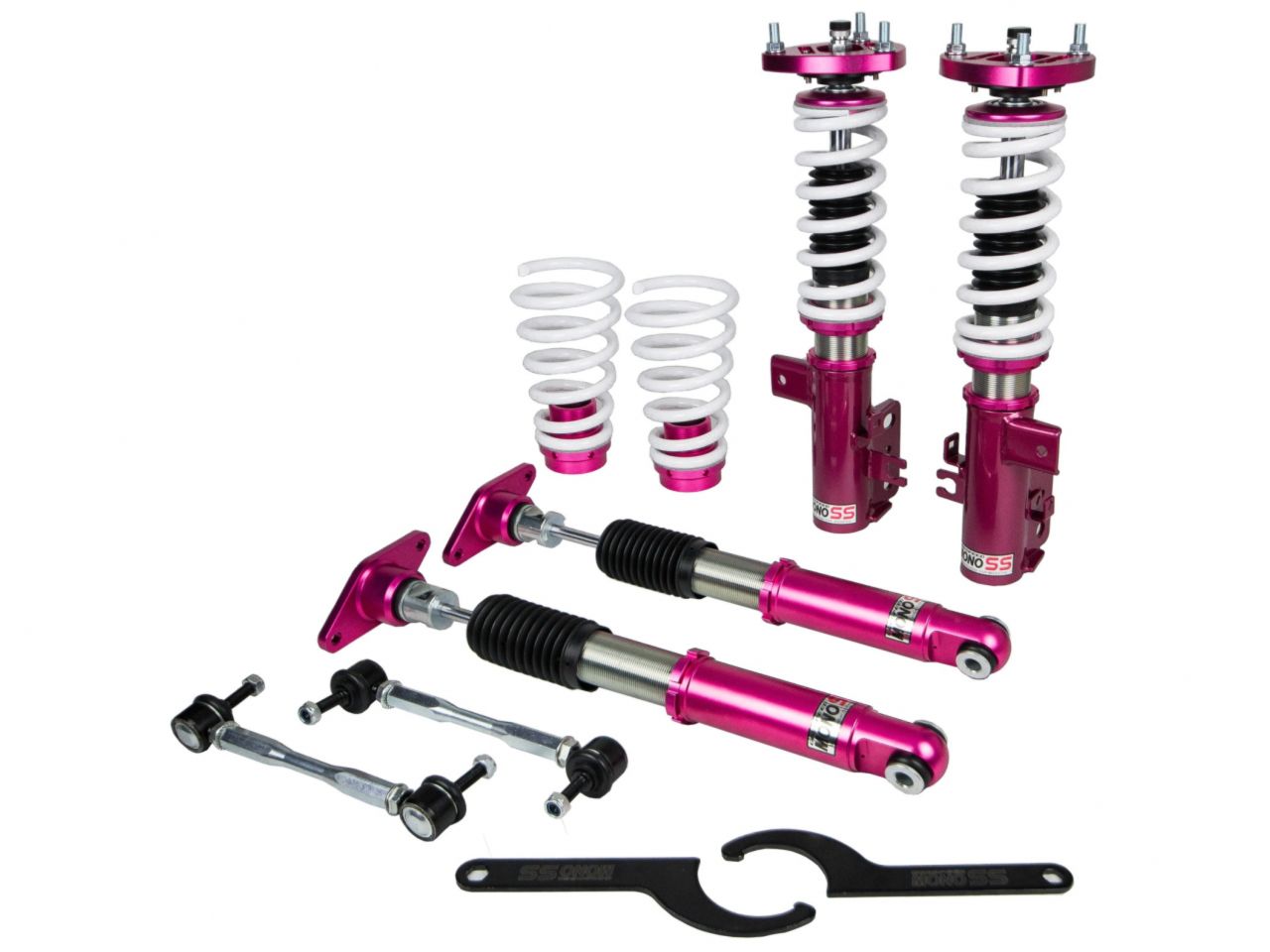

2014-2017, MonoSS

Special Notes Prior to installation, verify all hardware and properly tighten and spring preload is set to 5-10mm(1/4-3/8in). Our technical department is available to answer any other questions.
Damping Levels 16-Level
Height Adjustment Yes
Spring Rate(Front) 8 kg/mm (448 lbs/inch)
Spring Rate(Rear) 7 kg/mm (392 lbs/inch)
Spring Length(Front) 200 mm
Spring Length(Rear) 190 mm
Front Top Mount Yes, Pillow Ball w/ Camber Plate
Rear Top Mount Yes, Standard Type
Spring Inner Diameter(Front) 62 mm (2.44 inch)
Spring Inner Diameter(Rear) 62 mm (2.44 inch)
Warranty Note No
User Guide Coilover User Guide

2014, MonoSS

Special Notes Prior to installation, verify all hardware and properly tighten and spring preload is set to 5-10mm(1/4-3/8in). Our technical department is available to answer any other questions.
Damping Levels 16-Level
Height Adjustment Yes
Spring Rate(Front) 8 kg/mm (448 lbs/inch)
Spring Rate(Rear) 7 kg/mm (392 lbs/inch)
Spring Length(Front) 200 mm
Spring Length(Rear) 190 mm
Front Top Mount Yes, Pillow Ball w/ Camber Plate
Rear Top Mount Yes, Standard Type
Spring Inner Diameter(Front) 62 mm (2.44 inch)
Spring Inner Diameter(Rear) 62 mm (2.44 inch)
Warranty Note No
User Guide Coilover User Guide
