L&W Fab Replacement Inner Tie Rod Ends

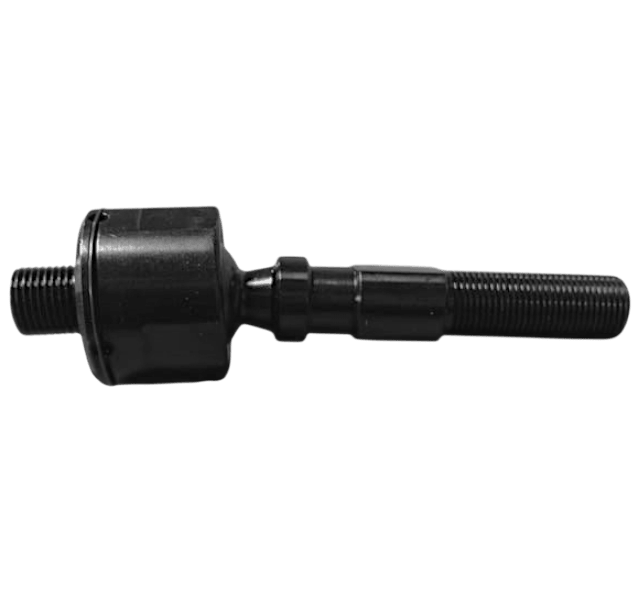

L&W Fab Inner Tie Rod Ends

L&W Fab's HD tie rod ends are sold as a set or individual.  They are a replacement end for L&W Fab tie rods.  They can be used on XP 1000, RZ1, Turbo, Turbo S, and Pro XP models with L&W Fab Tie Rods.

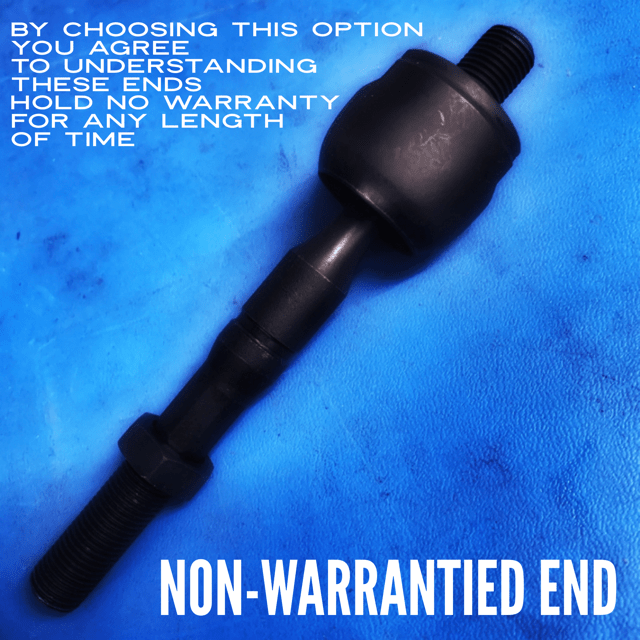

Factory ends are not warrantied.

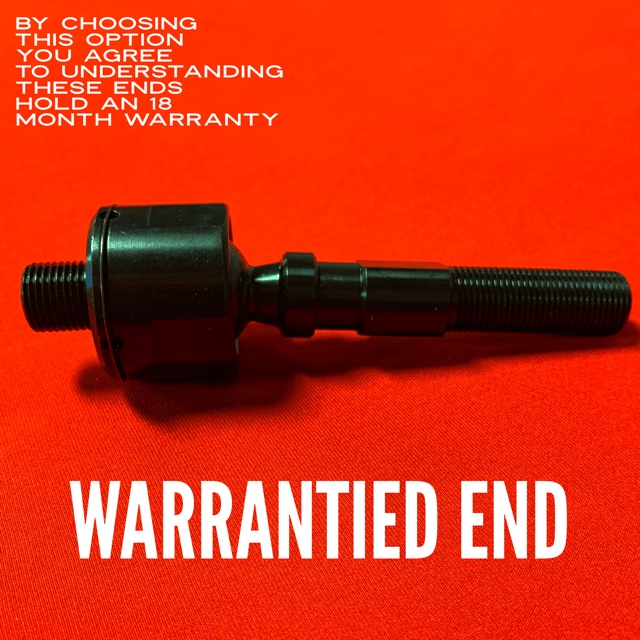

HD Rebuildable ends are warrantied for 18 months.

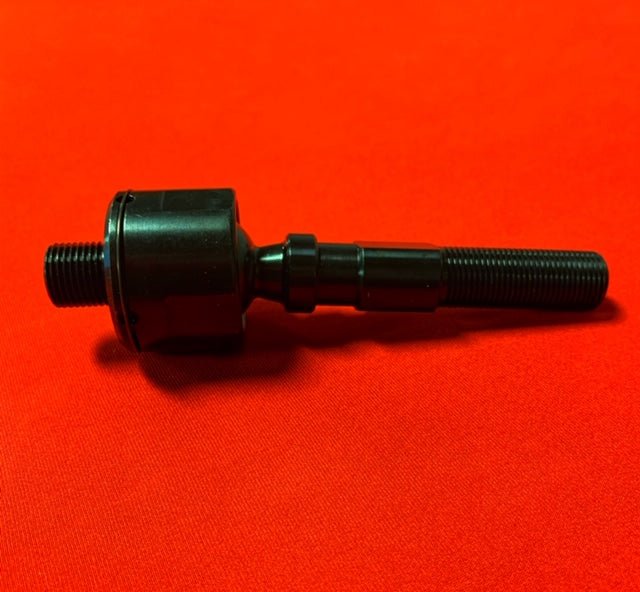

Specs for HD Rebuild-able Tie Rod Ends:

• Made in USA
• Fully rebuild-able
• Comes assembled with grease and ready for installation.
• Compatible with all Factory, L&W Fab, and many other tie rods.
• Starts with heat treated 4140 Black oxide finished
• These tie rod ends hold an 18 month warranty

To determine whether you have M14 or M16, please measure the ends of you factory tie rods (the side that screws into the rack). If the end is less the 1/2″ you will need M14, if it is over 1/2″ you will need M16. The turbo model usually takes M16 (measuring is recommended), the 1000 model is not consistent and will need to be measured. 2016 Turbo will always be M14/ PRO XP is M16

 Installation Video:
