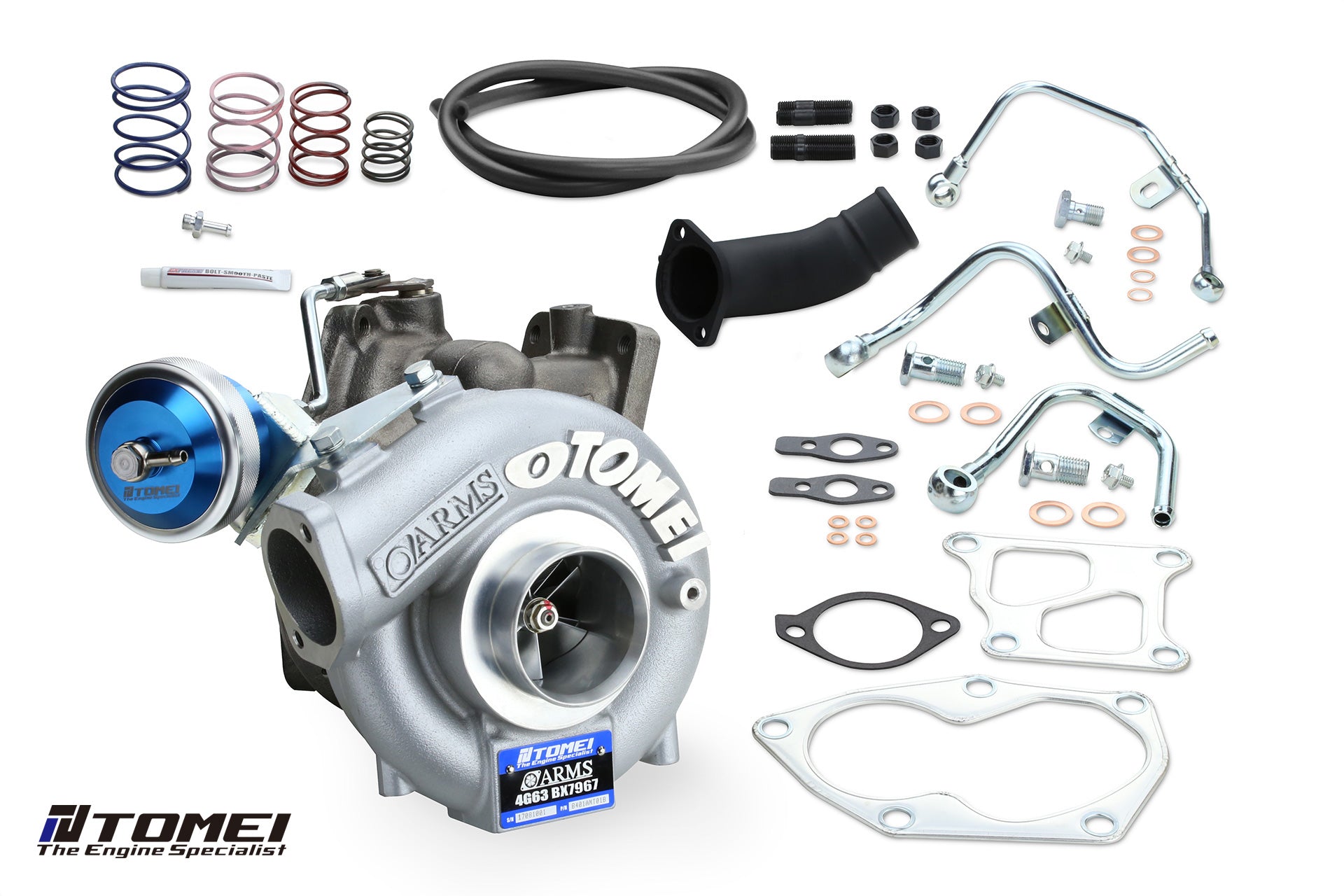

Tomei B/B Turbocharger Kit Arms 4G63

Tomei B/B Turbocharger Kit Arms 4G63

$1,602.00 USD
$1,780.00 USD $1,602.00 USD
Sale Sold out
Shipping calculated at checkout.
Option

B/B Turbocharger Kit Arms 4G63

Category  Engine  Parts Number
BX7960 EVO4-9  4G63 TB403A-MT01A
BX7967 EVO4-9 4G63 TB403A-MT01B


PART NUMBER TB403A-MT01A
 TB403A-MT01B
TARGET HP (HP) 400 430
BEARING TYPE Ball Bearing Ball Bearing
INITIAL BOOST SETTING (kgf/cm2) 1 1
COMPRESSOR WHEEL
ⒶIND(mm) 52.6 56.3
ⒷEXD(mm) 68 75
Trim 60 56
Blades 6/6 6/6
Material  A2618 A2618
Production CNC BILLET CNC BILLET
TURBINE WHEEL
ⒶIND(mm) 61 61
ⒷEXD(mm) 54 54
Trim 79 79
Blades 9 9
Material  K418 K418
Production CAST CAST
COMPRESSOR HOUSING
IND(mm) 61.85 60.63
EXD(mm) 50 50
A/R 0.78 0.78
TURBINE HOUSING
IND(mm) 4G63 4G63
EXD(mm) 4G63T 4G63T
A/R 0.77 0.77
