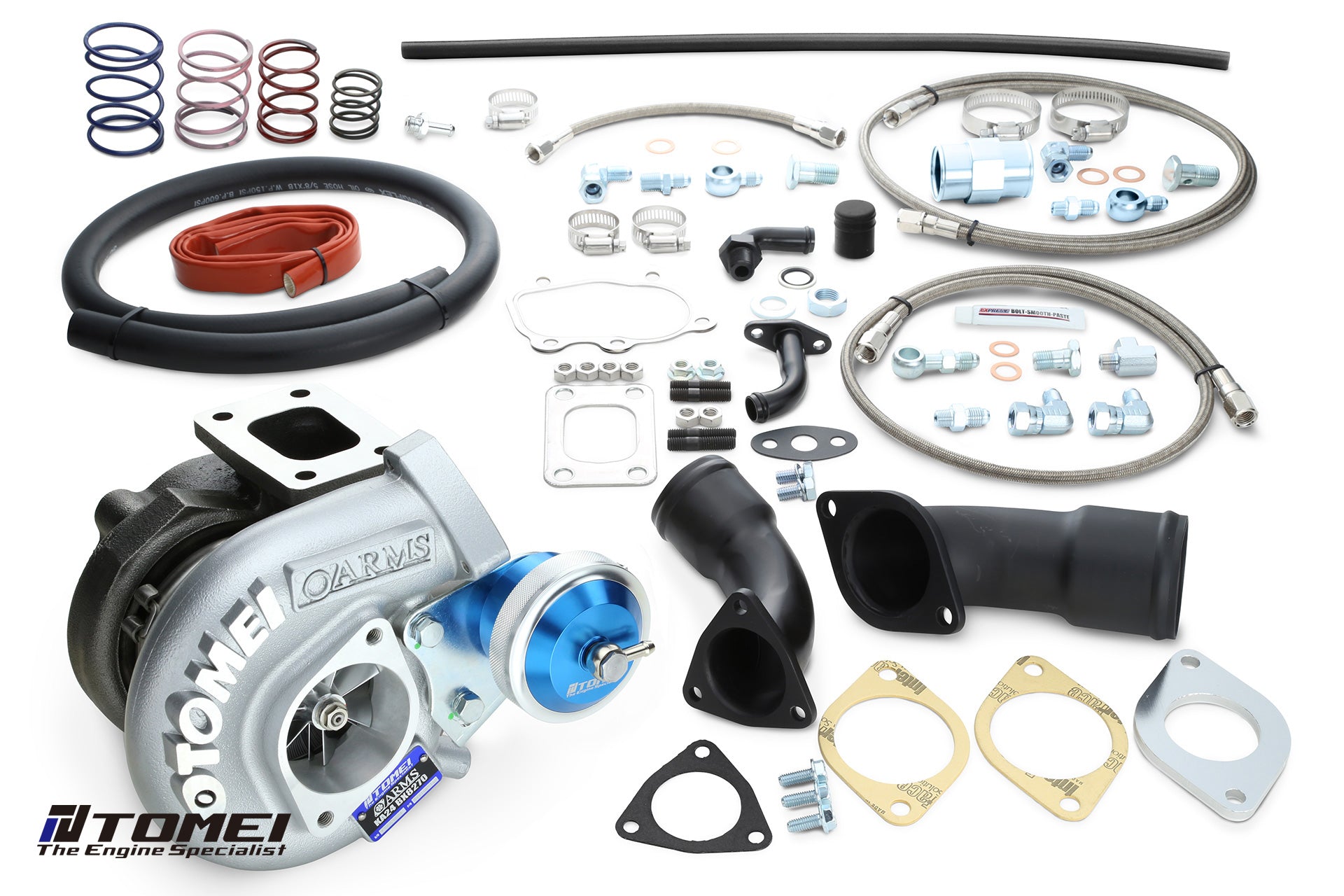

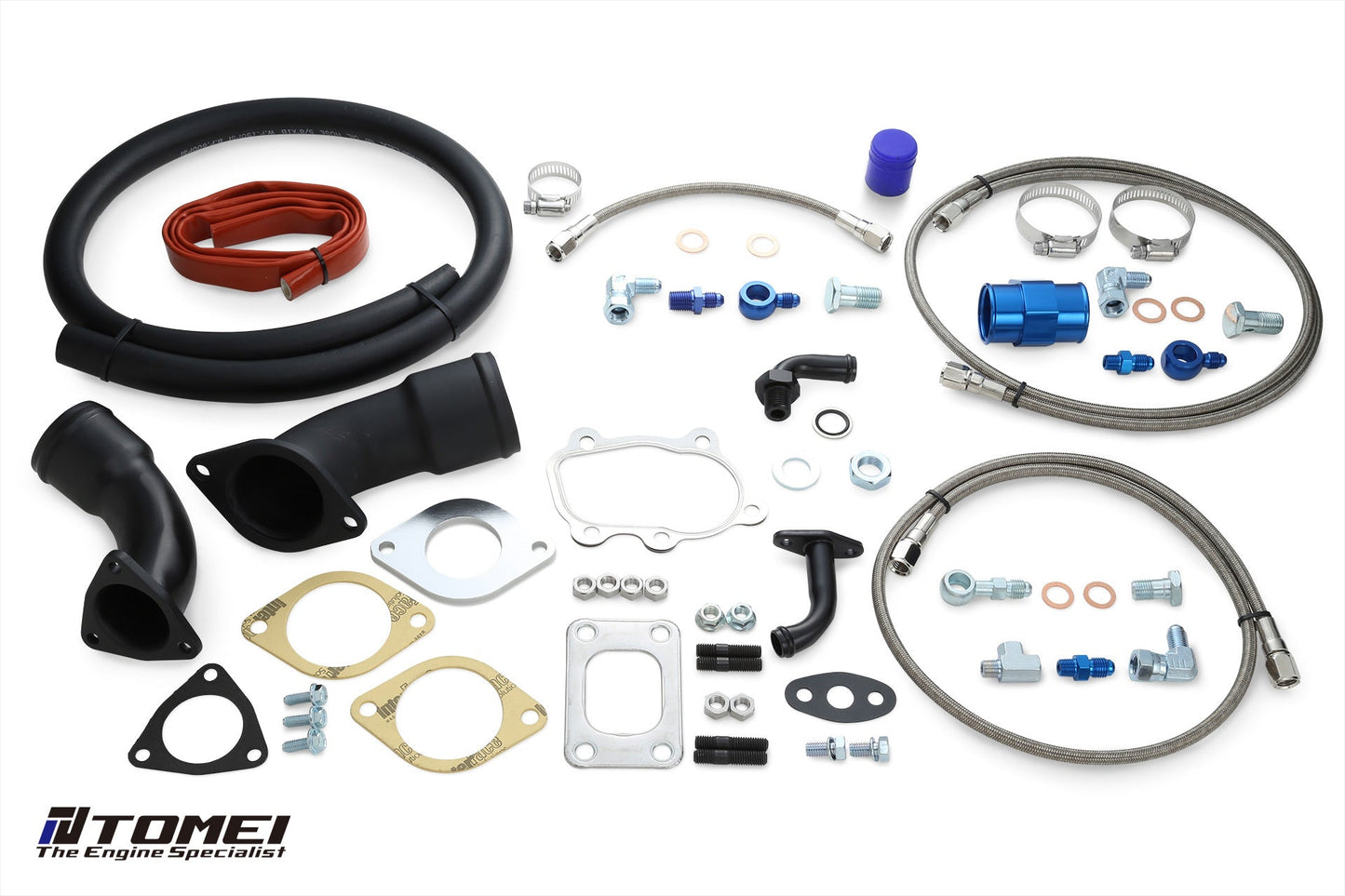

Tomei B/B Turbocharger Kit Arms KA24DE

Tomei B/B Turbocharger Kit Arms KA24DE

$1,602.00 USD
$1,780.00 USD $1,602.00 USD
Sale Sold out
Shipping calculated at checkout.
Option
Category  Engine  Parts Number
KA24DE BX7960 KA24 TB403A-NS16C
KA24DE BX8270  KA24 TB403A-NS16D
KA24DE HARDWARE PACK KA24 TB403A-NS16PK



PART NUMBER TB403A-NS16C TB403A-NS16D TB403A-NS16PK
TARGET HP (HP) 400 450 450
BEARING TYPE Ball Bearing Ball Bearing Ball Bearing
INITIAL BOOST SETTING (kgf/cm2) 1 1 1
COMPRESSOR WHEEL
ⒶIND(mm) 52.6 59 59
ⒷEXD(mm) 68 76.2 76.2
Trim 60 60 60
Blades 6/6 6/6 6/6
Material  A2618 A2618 A2618
Production CNC BILLET CNC BILLET CNC BILLET
TURBINE WHEEL
ⒶIND(mm) 61 67 67
ⒷEXD(mm) 54 58.8 58.8
Trim 79 77 77
Blades 9 9 9
Material  K418 K418 K418
Production CAST CAST CAST
COMPRESSOR HOUSING
IND(mm) 53.5 60 60
EXD(mm) 38.75 38.5 38.5
A/R 0.62 0.62 0.62
TURBINE HOUSING
IND(mm) T25 T25 T25
EXD(mm) SR20DET SR20DET SR20DET
A/R 0.57 0.57 0.57
