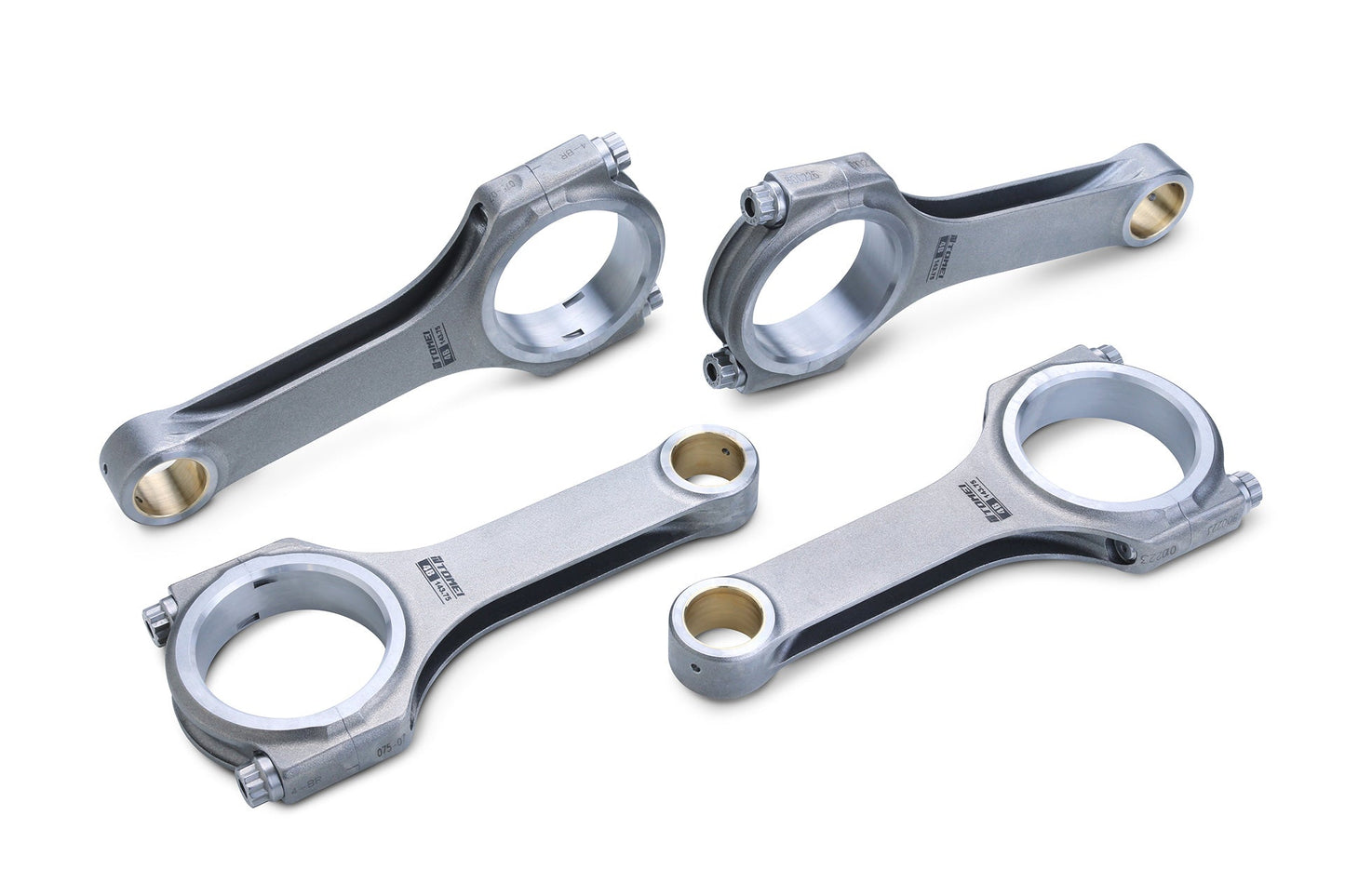

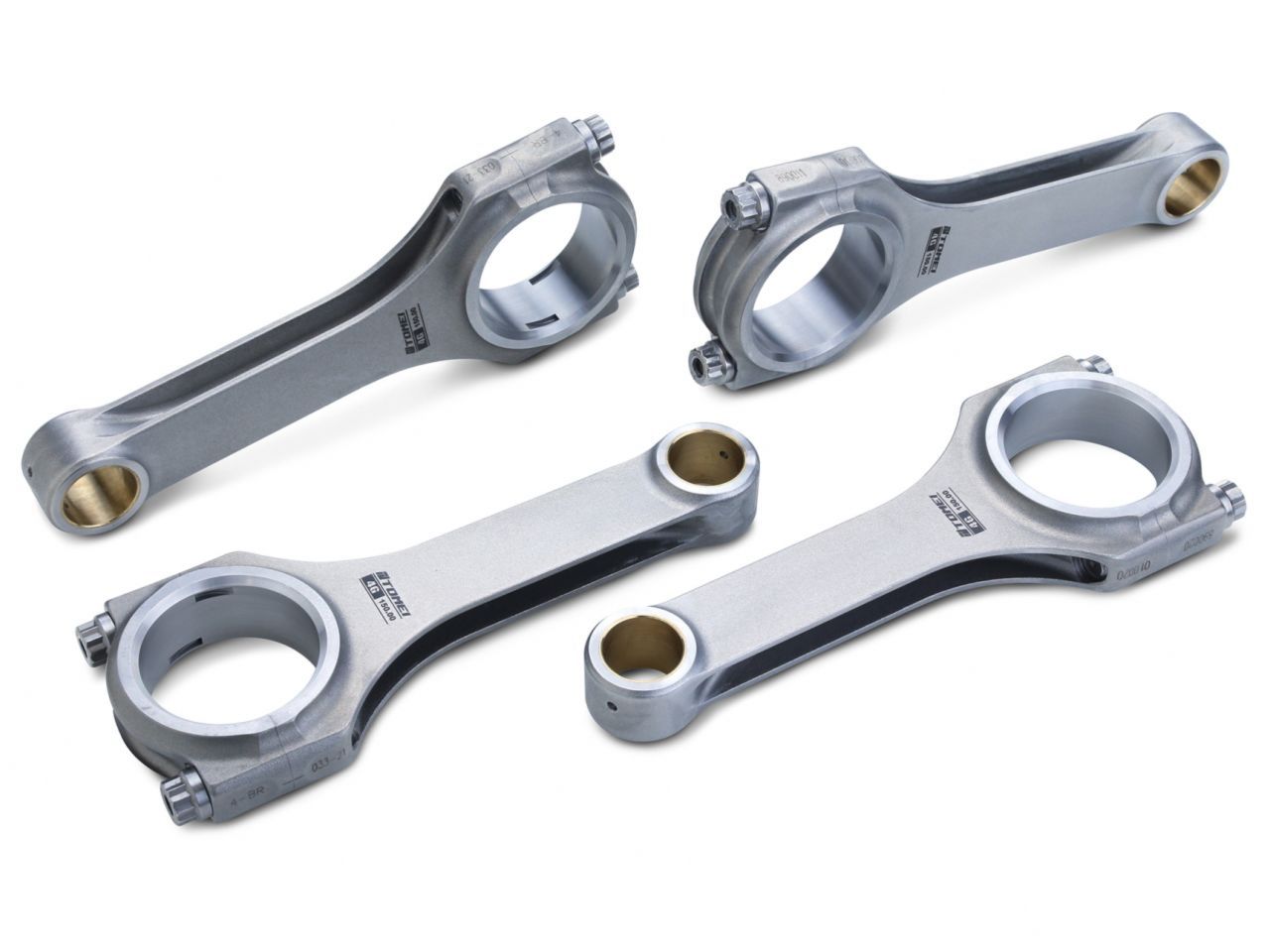

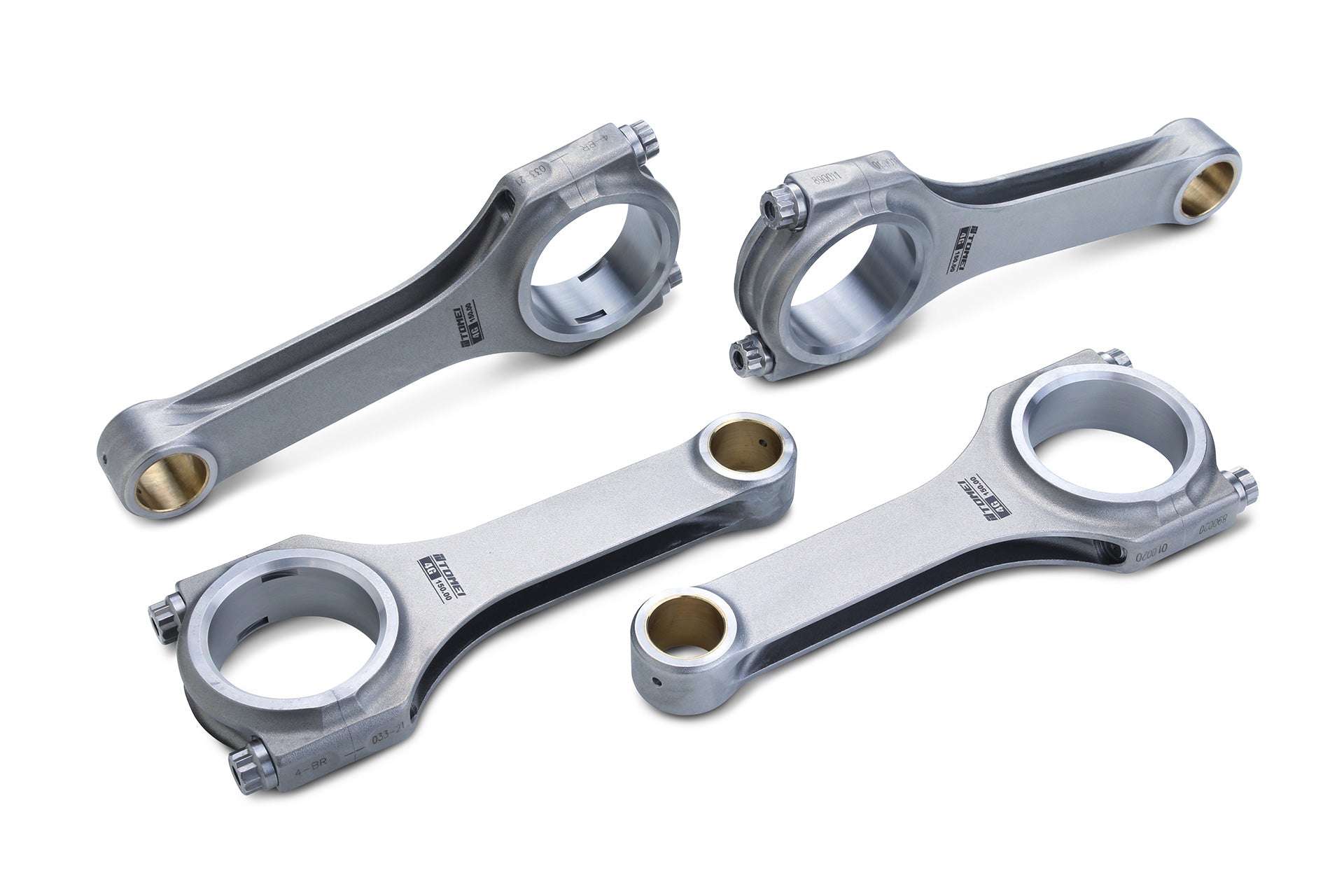

Tomei Forged H-Beam Connecting Rod Set

Tomei Forged H-Beam Connecting Rod Set

$648.00 USD
$720.00 USD $648.00 USD
Sale Sold out
Shipping calculated at checkout.
Option

Forged H-Beam Connecting Rod Set

Category: Cylinder Block Connecting Rod



Category  Engine Parts Number
 FORGED H-BEAM CONNECTING ROD SET 4G63 150.00mm (STD/2.2) 4G63 TA203A-MT01A
FORGED H-BEAM CONNECTING ROD SET 4B11 EVO10 143.75mm (STD/2.3) 4B11 TA203A-MT02A



Part Number TA203A-MT01A TA203A-MT02A
C-to-C (mm) 150.00 (OEM ±0.0)
 143.75 (OEM ±0.0)
BE.BORE×WIDTH
(mm)		 48.0×26.4
 55.0×21.9
PE.BORE×WIDTH
(mm)
(Bush inner cir)		 22.0×23.0
 23.0×20.0
MATERIAL SNCM439 SNCM439
BOLT  ARP L19
3/8-24 40.0mm		 ARP L19
3/8-24 40.0mm
BEARING SIZE  INNER DIA. 45.0mm
WIDTH 21.0mm		 INNER DIA. 52.0mm
WIDTH 17.0mm
WEIGHT (g)  591.0
 588.0
