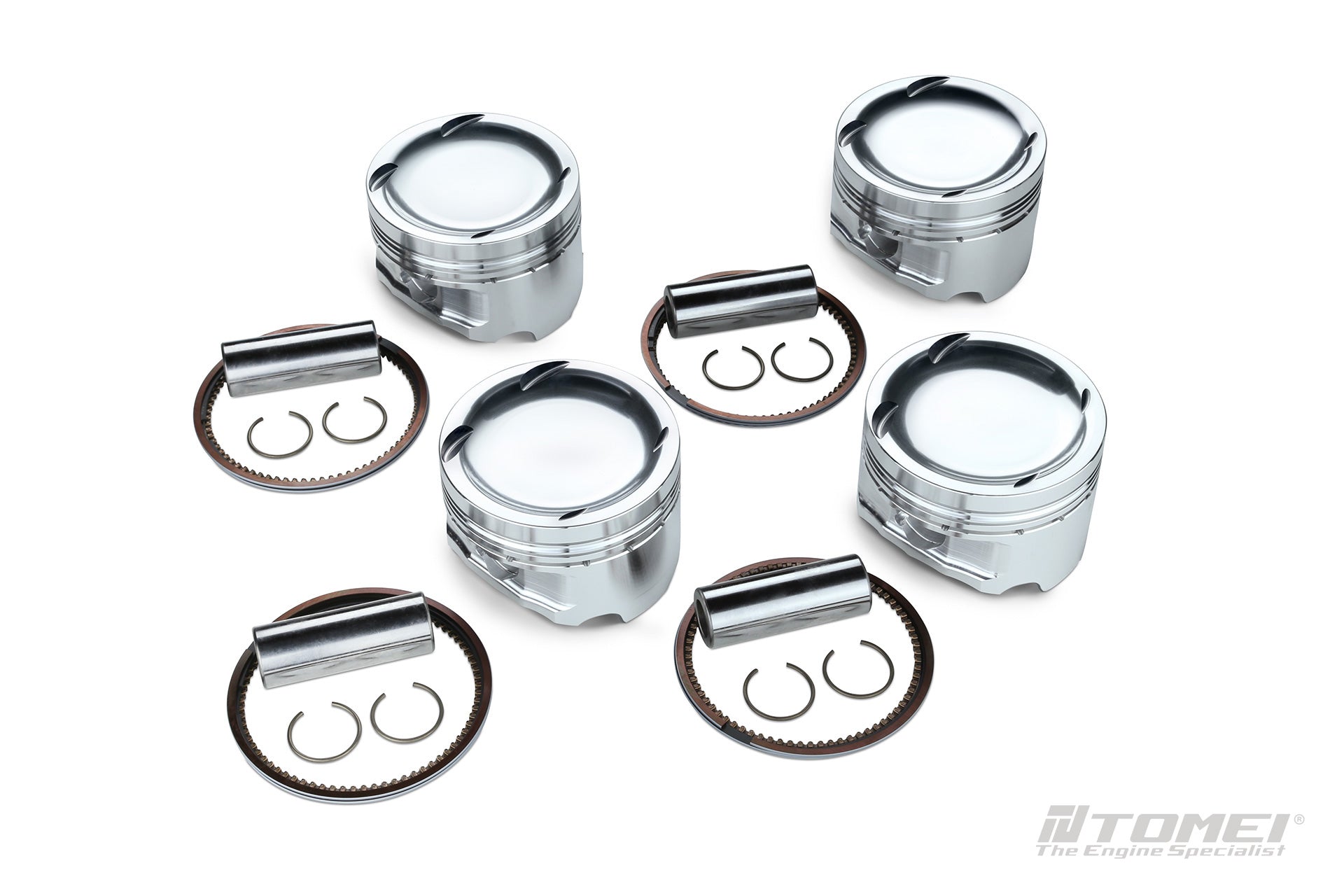

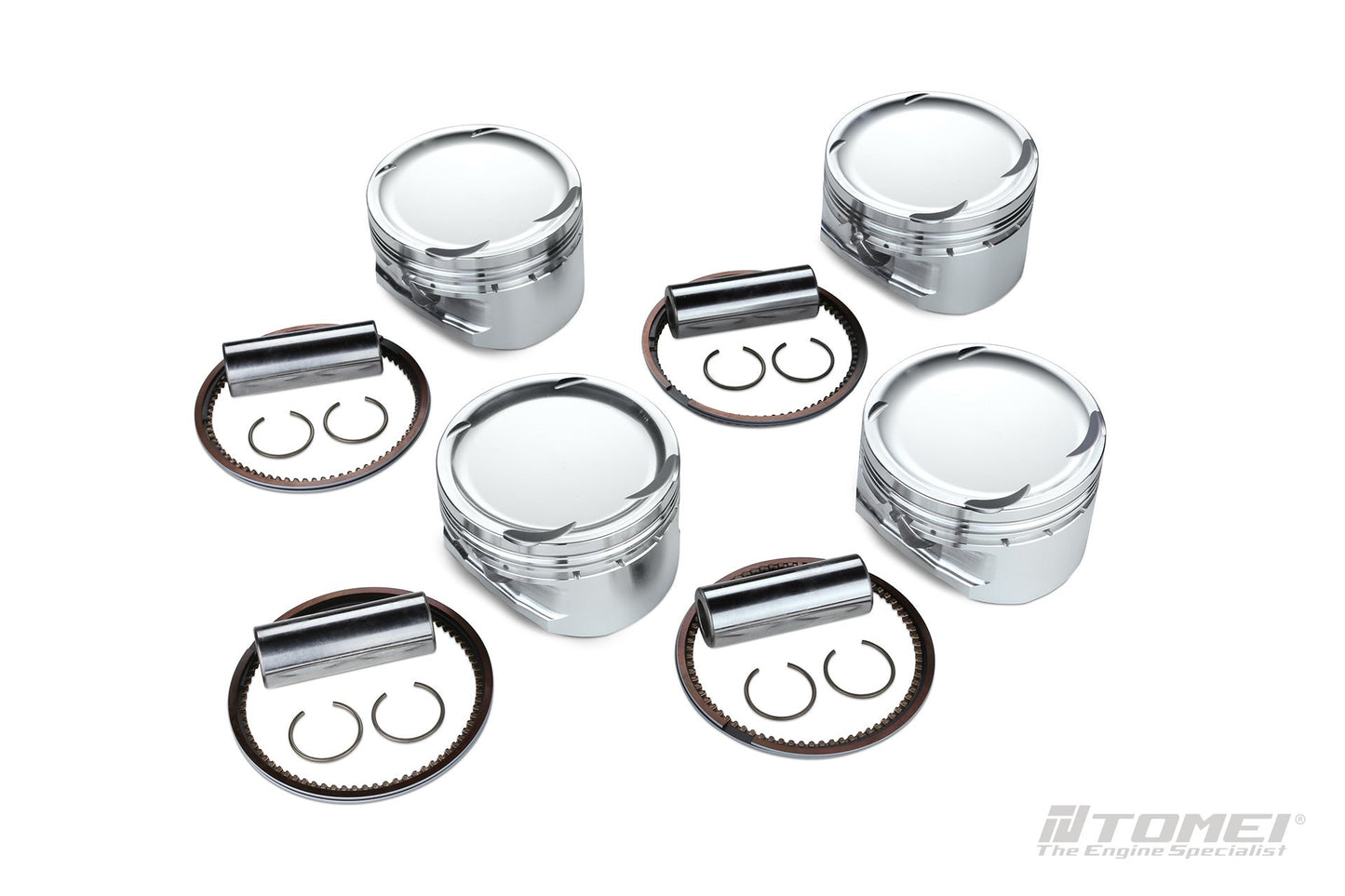

Tomei Forged Piston Kit

Tomei Forged Piston Kit

$1,080.00 USD
$1,200.00 USD $1,080.00 USD
Sale Sold out
Shipping calculated at checkout.
Option

Tomei Forged Piston Kit 4G63 & 4B11



Category  Engine Parts Number
86.00mm CH31.65 (2.2) 4G63

TA202A-MT01A
86.00mm CH31.65 (2.2) CP

4G63

 TA202A-MT01AP
87.00mm CH27.40 (2.3) 4B11 TA202A-MT02A
87.00mm CH27.40 (2.3) CP 4B11 TA202A-MT02AP



Part Number TA202A-MT01A TA202A-MT01AP TA202A-MT02A TA202A-MT02AP
BORE (mm)  86.00 (OEM +1.0)
 86.00 (OEM +1.0)
 87.00 (OEM +1.0)
 87.00 (OEM +1.0)
PIN DIA. (mm)  22 22 23 23
PIN LENGTH (mm)  60 60 62 57
CLIP INNNER DIA.  22 22 23 23
VALVE RECESS  WITH WITH WITHOUT WITHOUT
COMP.HEIGHT (mm)  31.65 (OEM -3.35)
 31.65 (OEM -3.35)
 27.38 (OEM -6.0)
 27.38 (OEM -6.0)
PISTON DOME VOL. (cc)  -19.5 -19.6   -12.9
PISTON WEIGHT (g)  328.7 335.1   305.1
PIN WEIGHT (g)  121.5 125 133 117
TOTAL WEIGHT (g)  450.2 460.1   422.1
TOP RING (mm)  1.20 x 3.05 1.20 x 2.95 1.20 x 3.05 1.00 x 3.30
SECOND RING (mm)  1.20 x 3.70 1.20 x 2.95 1.20 x 3.9 1.20 x 3.60
OIL RING (mm)  2.50 x 2.85 2.00 x 2.60 2.50 x 2.95 3.60 x 3.25
MATERIAL A4032 A2618 A4032 A2618
