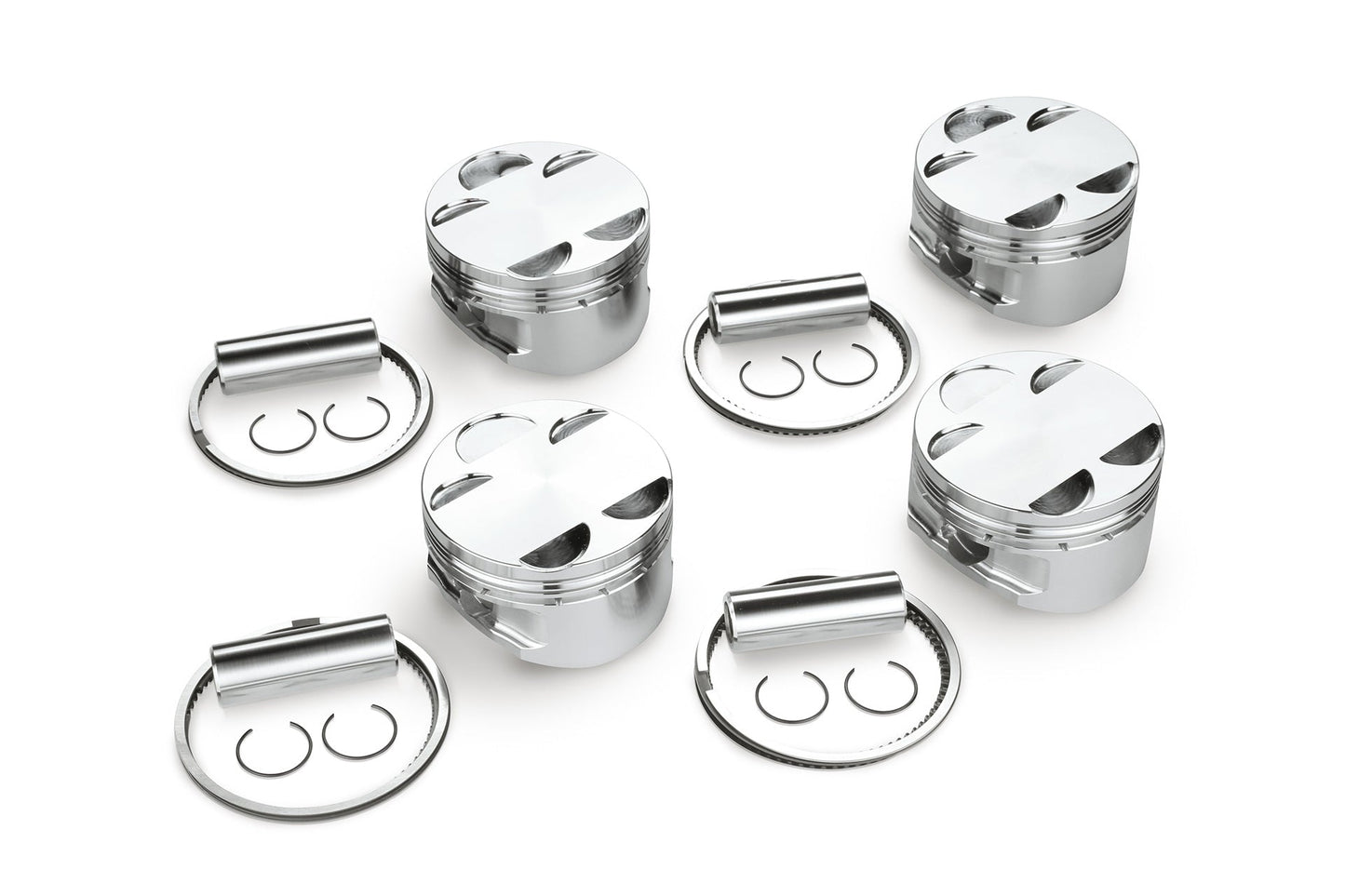

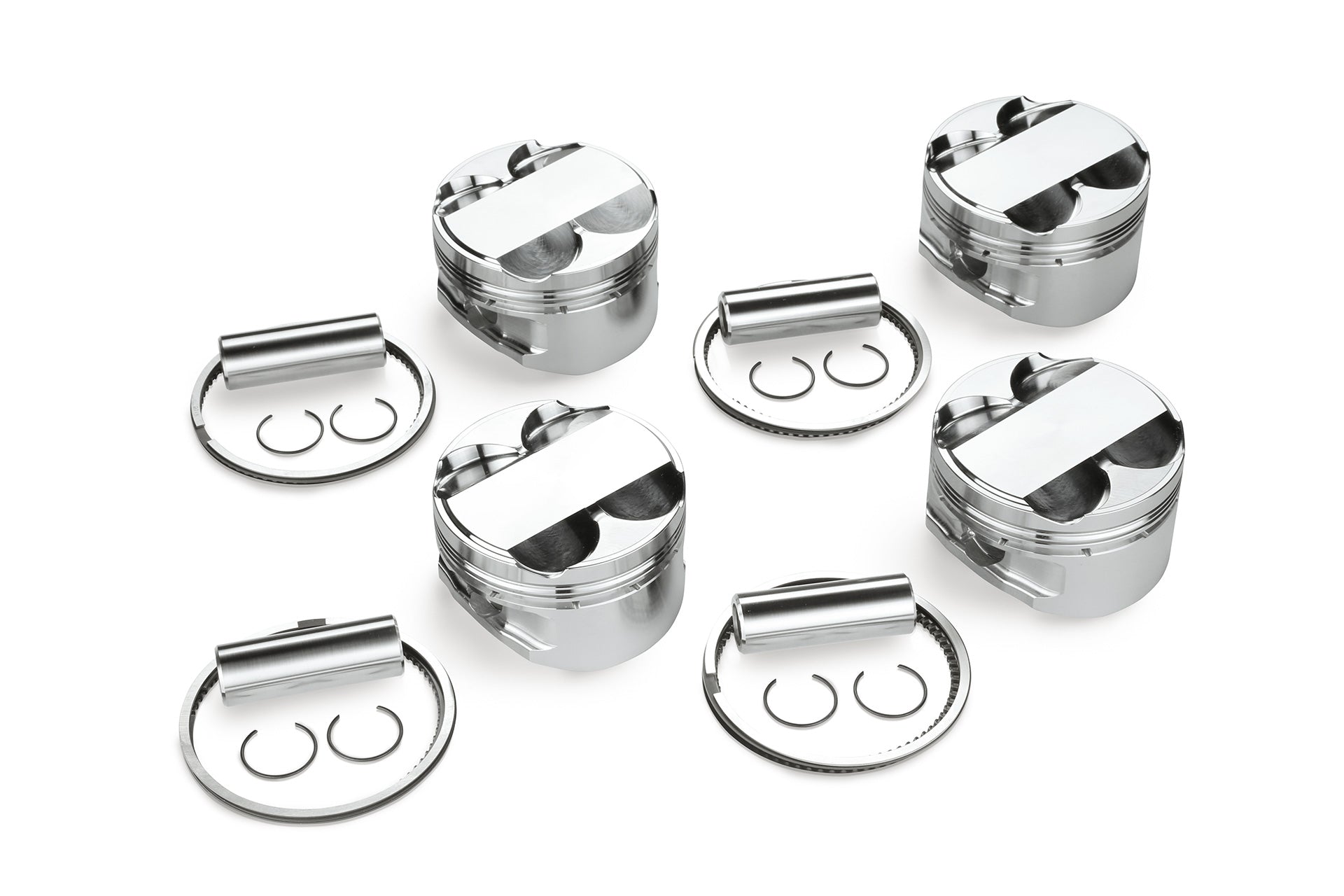

Tomei Forged Piston Kit 4A-G

Tomei Forged Piston Kit 4A-G

$1,080.00 USD
$1,200.00 USD $1,080.00 USD
Sale Sold out
Shipping calculated at checkout.
Option

Tomei Forged Piston Kit 4A-G

Category  Engine Parts Number
82.00mm CH27.70 (1.8) CP 4AG-16V TA202A-TY01AP
82.00mm CH27.70 (1.8) CP 4AG-20V TA202A-TY02AP


Part Number TA202A-TY02AP TA202A-TY01AP
BORE (mm)  82.00 (OEM +1.0)
 82.00 (OEM +1.0)
PIN DIA. (mm)  20 20
PIN LENGTH (mm)  57 60
CLIP INNNER DIA.  20 20
VALVE RECESS  WITH
 WITH
COMP.HEIGHT (mm)  27.70 (OEM -3.0)
 27.70 (OEM -3.0)
PISTON DOME VOL. (cc)  -1.38 -0.32
PISTON WEIGHT (g)  265 277
PIN WEIGHT (g)  90.4 90.4
TOTAL WEIGHT (g)  355.4 367.4
TOP RING (mm)  1.00 x 3.20
 1.00 x 3.20
SECOND RING (mm)  1.20 x 3.5
 1.20 x 3.5
OIL RING (mm)  2.8 x 2.50 2.8 x 2.50
MATERIAL A2618 A2618
