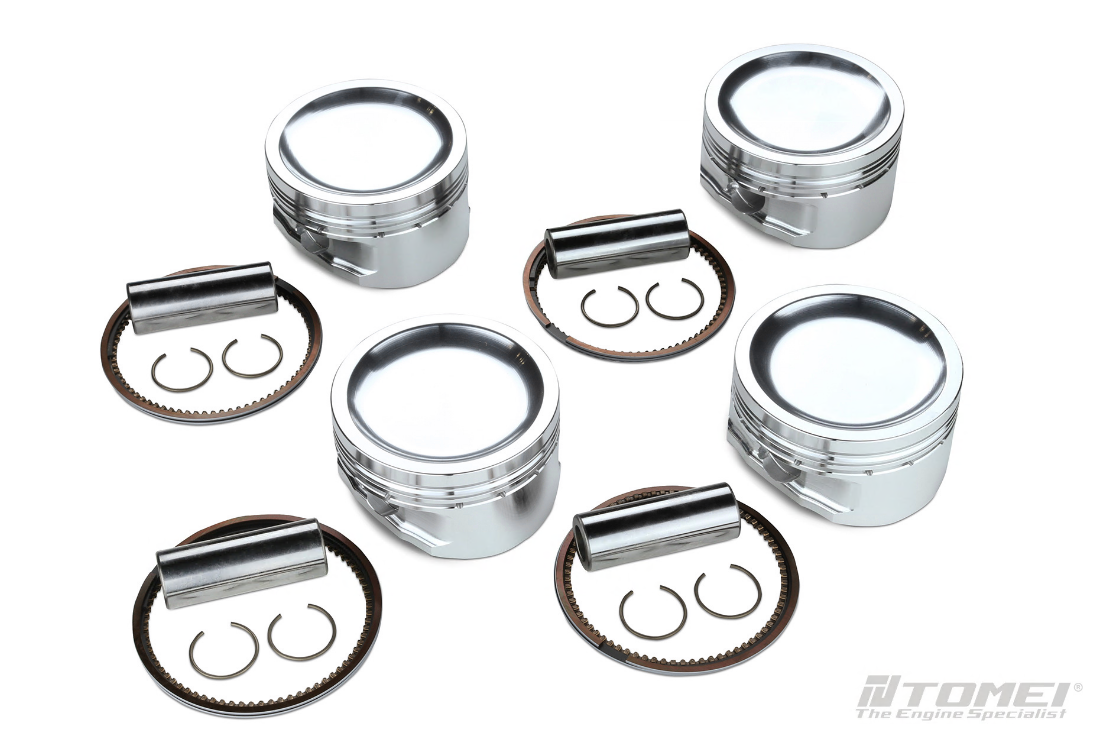

Tomei Forged Piston Kit SR20

Tomei Forged Piston Kit SR20

$1,080.00 USD
$1,200.00 USD $1,080.00 USD
Sale Sold out
Shipping calculated at checkout.
Engine
Category

Forged Piston Kit

Category  Engine  Parts Number
87.00mm CH29.50 (2.2) SR20 TA202A-NS08A
SR20DET 87.00mm CH29.50 (2.2) CP SR20 TA202A-NS08AP



Description

 TA202A-NS08A   TA202A-NS08AP
BORE (mm) 87.00 (OEM +1.0) 87.00 (OEM +1.0)
PIN DIA. (mm) 22 22
PIN LENGTH (mm) 60 60
CLIP INNNER DIA. 22 22
VALVE RECESS WITHOUT WITHOUT
COMP.HEIGHT (mm) 29.50 (OEM -2.5) 29.50 (OEM -2.5)
PISTON DOME VOL. (cc) -18 -17.8
PISTON WEIGHT (g) 317 310
PIN WEIGHT (g) 121.5 125.1
TOTAL WEIGHT (g) 438.5 435.1
TOP RING (mm) 1.20 x 3.05 1.20 x 2.90
SECOND RING (mm) 1.20 x 3.90 1.20 x 3.00
OIL RING (mm) 2.50 x 2.95 2.50 x 2.60
MATERIAL A4032

A2618
