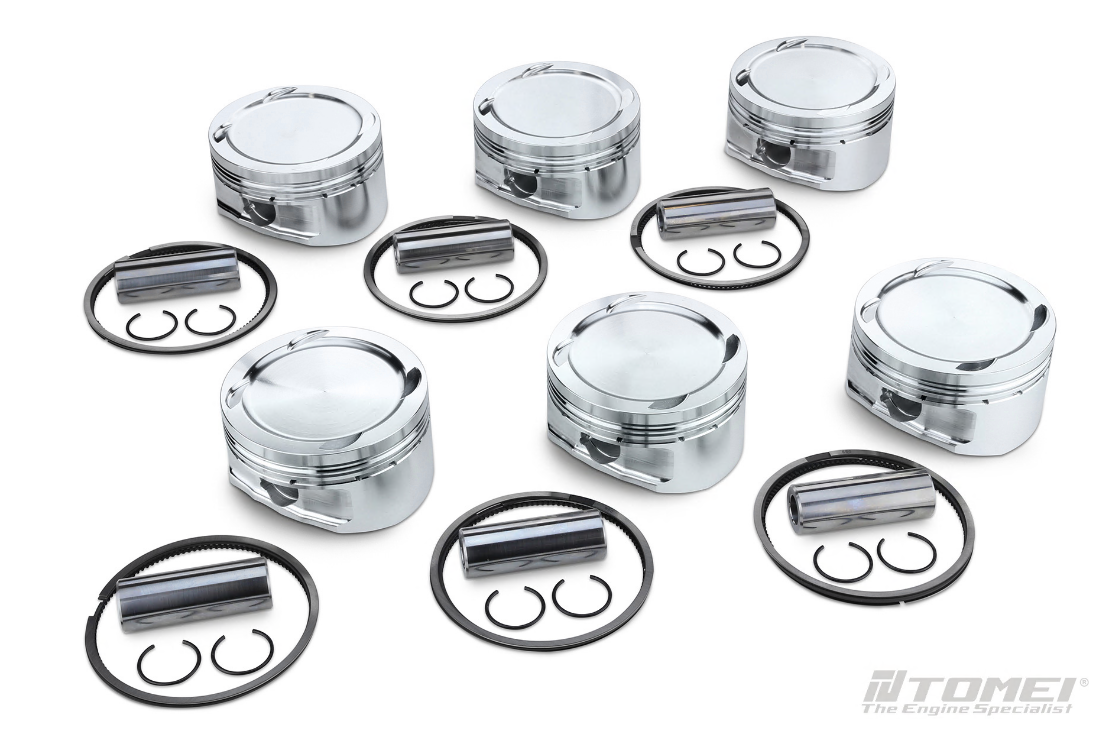

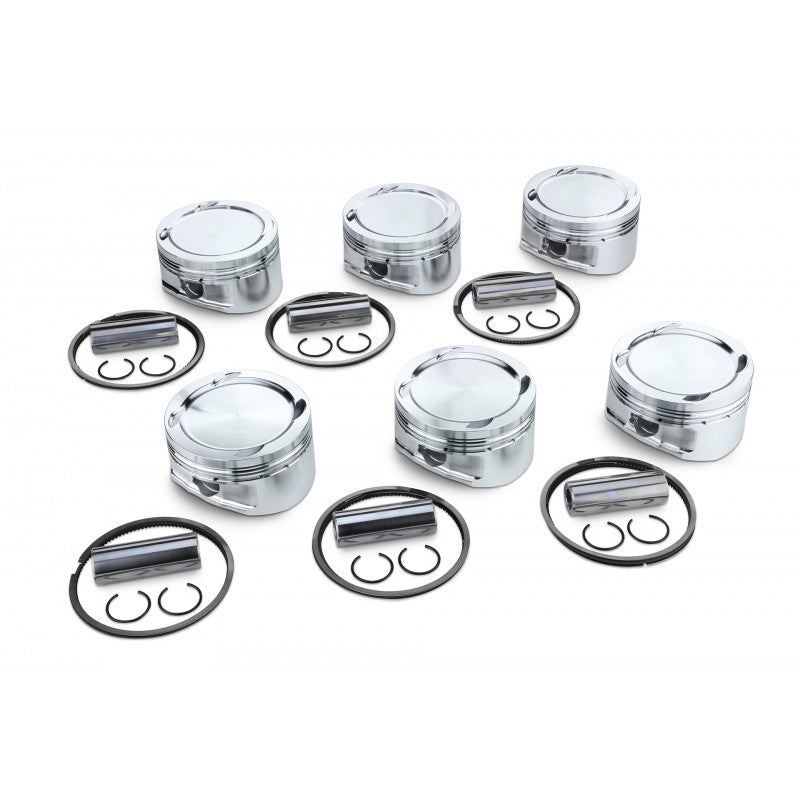

Tomei Forged Piston Kit VR38

Tomei Forged Piston Kit VR38

$1,620.00 USD
$1,800.00 USD $1,620.00 USD
Sale Sold out
Shipping calculated at checkout.
Engine
Category

Forged Piston Kit

Category  Engine  Parts Number
95.50mm CH31.20 (4.1) VR38 TA202A-NS01A
VR38DETT 95.50mm CH31.20 (4.1) CP VR38 TA202A-NS01AP


Description

 TA202A-NS01A   TA202A-NS01AP
BORE (mm) 95.50 (OEM ±0.0) 95.50 (OEM ±0.0)
PIN DIA. (mm) 23 23
PIN LENGTH (mm) 62 64
CLIP INNNER DIA. 23 23
VALVE RECESS WITH WITH
COMP.HEIGHT (mm) 31.20 (OEM -3.1) 31.20 (OEM -3.1)
PISTON DOME VOL. (cc) -10 -9.1
PISTON WEIGHT (g) 413 392.5
PIN WEIGHT (g) 133 137.5
TOTAL WEIGHT (g) 546 530
TOP RING (mm) 1.20 x 3.45
SECOND RING (mm) 1.20 x 4.10
OIL RING (mm) 2.50 x 2.20
MATERIAL A4032 A2618


View full details
